Your Best Recycling Machine Partner

Automatic Baling Machine

ENERPAT Automatic Baling Machine combines efficiency, intelligence, and safety into one integrated solution. Featuring fully automated technology, it offers customized material compression and packaging solutions for various industries. ​This machine helps businesses optimize storage while reducing costs and increasing efficiency.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HBA

  • ENERPAT

Product Video

Product Overview

Auto-Tie Horizontal Baler

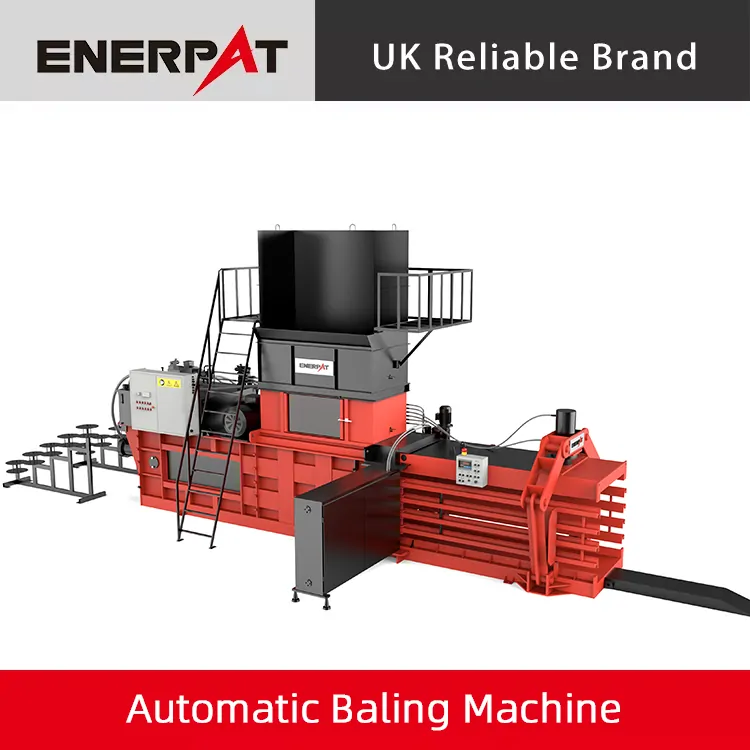

ENERPAT Automatic Baling Machine

ENERPAT® Automatic Baling Machine combines efficiency, intelligence, and safety to provide comprehensive material compression and packaging solutions for various industries. Utilizing advanced automation technology, it enables fully automated operations from feeding and compression to strapping and ejection, eliminating the need for manual intervention. This significantly enhances packing efficiency and accuracy.


With its powerful compression capabilities and customizable baling sizes, it meets diverse requirements across many applications. The auto tie horizontal baler is widely used in recycling facilities, manufacturing sectors, and distribution centers, helping businesses optimize storage space, reduce transportation costs, and improve overall productivity.


Composition and Structure

产品结构图

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Applications

Product Details

Three-way Compression

Three-way Compression
  • The three-way compression mechanism is equipped with three hydraulic cylinders, which are controlled in two directions and change in linkage with the pressure of the main compression cylinder.

  • The three-way compression design ensures that the block is well formed and the finished product has a high density


Hydraulic System

Hydraulic System
  • Europe Design hydraulic system,efficiency and stable

  • International Top Brands valve and pump

  • Air Conditioner Cooling System which accept machine 24/7 working


Electric System

Hydraulic System
  • The main electrical components are selected from the French Schneider brand

  • The PLC brand of the equipment is Siemens

  • European CE design standard, in line with EU safety requirements


Automatic Baling System

Automatic Baling System
  • German automatic strapping technology, stable and efficient

  • The core components are imported, reliable and durable



Technical Data Sheet

Model

Bale Size
(WxHxL)(mm)
Bale Weight
(Cardboard)(kg)
Motor Power
(kw)
Press Force
(t)
Machine Size
(LxWxH) (mm)

HBA-30-5050500×500×L40-7011305300×2600×1750
HBA-40-7272720×720×L200-50022406770×3050×3580
HBA-60-110751100×750×L400-70022606880×3850×3550
HBA-80-110751100×750×L600-90037806880×3850×3550
HBA-100-1101101100×1100×L800-1100451008560×3950×4550
HBA-120-1101251100×1250×L900-1200551209250×4150×4850
HBA-150-1101251100×1250×L1100-13009015010050×4100×4910
HBA-200-1101251100×1250×L1250-135011020010050×4100×4910

Successful Cases

Auto-Tie-Horizontal-Baler-5

Area:China

Auto-Tie-Horizontal-Baler-4

Area:Peru

Auto-Tie-Horizontal-Baler-6

Area:USA

Auto-Tie-Horizontal-Baler-3

Area:Dominina

Auto-Tie-Horizontal-Baler-1

Area:USA

Auto-Tie-Horizontal-Baler-2

Area:Peru
