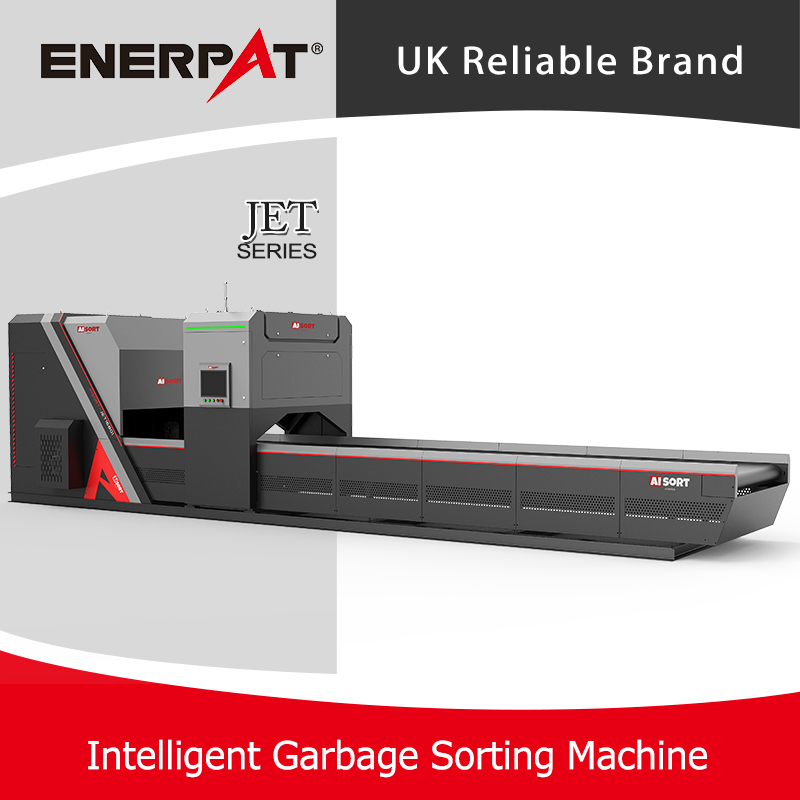

Plastic Bottles AI Sorting Machine

As a fast-growing artificial intelligent technology enterprise, with the mission of industrial unmanned operation and maintenance, the company is committed to the development of robot system, the construction of operation and maintenance system and the implementation of terminal solutions.

Quantity:
Availability:





Inquire Add to Basket

Model:
JET
Brand:
ENERPAT

Product Video

Product Description

Plastic Bottles AI Sorting Machine

The Company now has three core technologies: powerful database support technology, independently developed human-like visual recognition technology and PaikeNet convolution neural network learning technology, which have been successfully applied to environmental sanitation, environmental protection, photovoltaic, agriculture, security and other industries; AITARGET autonomous navigation system independently developed by the company has completely realized indoor and outdoor autonomous navigation.

Plastic Bottles AI Sorting Machine

Product Details

FAST SORTING SPEED

Standard belt speed is 3m/s, up to 5m/s.
Suitable for large-scale sorting, for example, the treatment capacity of regenerated PET can reach up to 8 tons/hour.

GOOD SORTING EFFECT

The sorting accuracy can reach over 95%, and the material removal rate is low, which is suitable for fine sorting.
Algorithm adjustment can be made according to the customer’s on-site materials to improve the sorting effect.

STRONG RECOGNITION ABILITY

Self-developed framework is adopted to greatly enhance the sorting precision, and it can identify various fine materials and color characteristics.
It can quickly identify the color, appearance, shape, size and even brand characteristics of the waste.

WIDE APPLICATION RANGE

It can be applied to the sorting of various recyclable materials, such as waste paper, PET bottles, HDPE bottles, pop cans and plastic bags, etc.
It can support the sorting of PET bottles, PP bottles, HDPE bottles, aluminum cans, iron cans, etc. with or without labels.

Applications

详情2-

Technical Data Sheet

Model	JET10301	JET10601	JET14301	JET14601	JET20601	JET28601
Sorting efficiency	1t/h	3t/h	2t/h	5t/h	7t/h	9t/h
Conveyor belt width	1.0m	1.0m	1.4m	1.4m	2.0m	2.8m
Length of conveyor belt	3m	6m	3m	6m	6m	6m
Design conveyor line speed	0-3.5 m/s	0-3.5 m/s	0-3.5 m/s	0-3.5 m/s	0-3.5 m/s	0-3.5 m/s
Discharging bin with two-part position	●	●	●	●	●	●
High-speed AI visual recognition system	●	●	●	●	●	●
PAIK inside sorting software	●	●	●	●	●	●
Multi-hole high-frequency jet module	●	●	●	●	●	●
Motor Power	5KW	6KW	5KW	8.5KW	10KW	12KW
Screw compressor	15KW/○	15KW/○	15KW/○	15KW/○	22KW/○	22KW/○
deep learning control host	●	●	●	●	●	●

Note: ● indicates standard configuration; ○ indicates optional configuration

Successful Cases

HDPE bottles sorting machine plastic bottles sorting machine plastic recycling machine PP bottles sorting machine recycling machine plastic bottles baler
