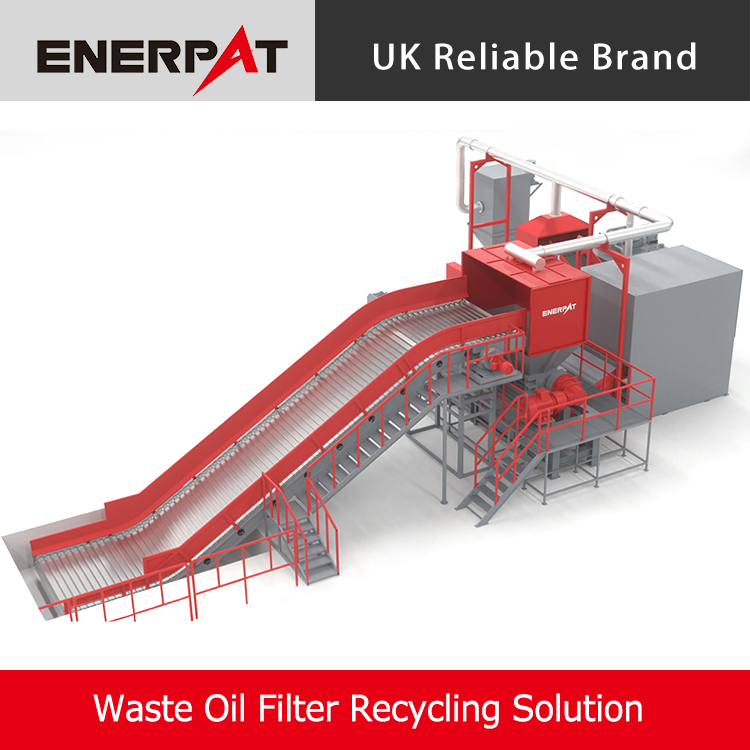

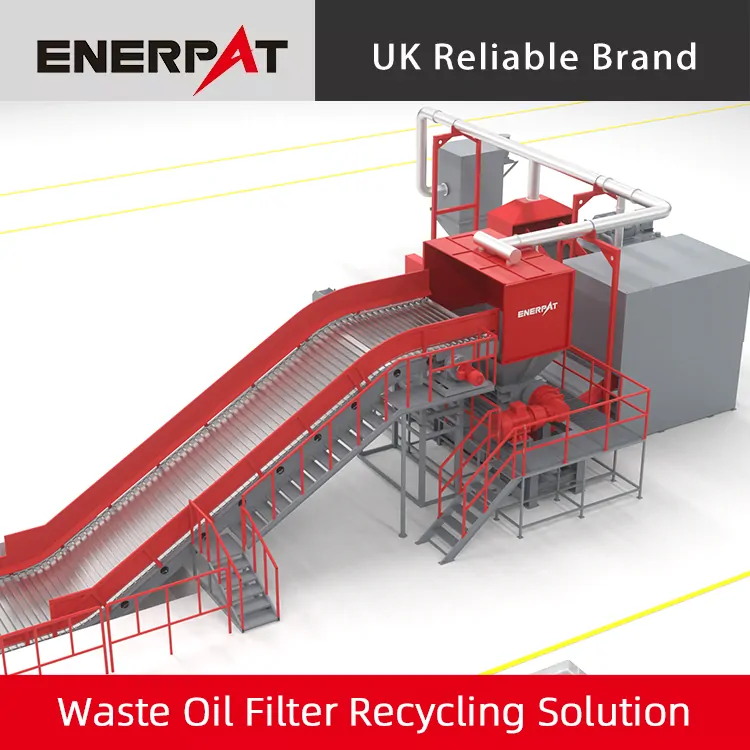

Waste Oil Filter Recycling Solution

The Waste Oil Filter Recycling System is mainly used to process the oil filters from cars and trucks. Through processes such as shredding and screening, recycled materials such as iron, waste oil, and filter paper can be obtained. This solution can flexibly adjust the layout and production capacity according to different needs, achieving efficient processing ranging from 500 kg/hour to 4000 kg/hour.

Quantity:
Availability:





Inquire Add to Basket

Brand:
ENERPAT

Product Video

Product Description

Waste Oil Filter Recycling Solution

Waste Oil Filter Recycling System

ENERPAT Waste Oil Filter Recycling System uses a two shaft or Four Shaft Shredder for primary shredding, shredding it into 30-60mm chips, passing through the vibrating screen to evenly distribute the finished product to the next section, while shaking out the oil inside. The iron in the material is separated from the paper by the magnetic separator. The scrap iron is broken into small balls through the Hammer Mill, and then washed and dried to become pure dry iron. The oil paper is deoiled and turned into dry paper.

Product Applications

End products

Product Details

Steel Chain Feeding Conveyor

Steel Chain Feeding Conveyor

Steel Chain made conveyor belt,stable and strong enough for oil filter
Motor drive the conveyor shaft directly, more effective
Connected to the Electric Box PLC, Speed adjustable according to the Hammer Mill working condition

Four Shafts Shredder

Four Shafts Shredder

Used for shredding Waste Oil Filter into smaller pieces
International Top Brand machine parts like SIEMENS motor, BONENG gearbox, SCHNEIDER electric system, SKF bearing,etc
German material blades like Hardox or Dillinger

Hammer Mill

Hammer Mill

High-Strength Cutter Shaft Structure, With HARDOX 500 Wearing Plate on the shaft for protection
After the crushing chamber is welded, the overall stress relief is annealed, and it is processed and bored by high-precision numerical control to ensure long-term high-load operation of the equipmen
There has sensor inside of the crusher can recognize abnormal material , It can give instructions to the crusher if meet some hard materials can not crush, to discharge abnormal material automatically
There has rail for the screen, just loose 8 pcs screws, use forklift to pull it, then you can replace the screen. Two minutes is enough
We have hydraulic system which can assist us to change the hammers and Pins
With special Springs installed below the Crusher, it can efficiently reduce the machine vibration when working

Vibration Table

Vibration Table
