Metal Chips Briquetting Press

ENERPAT Metal Briquetting Press designed for pressing metal chips / metal turnings like steel,aluminum,copper,stainless steel into compact bales,reducing the metal chips / metal turnings volume,saving energy for furnace. Capacity from 50 kgs/h to 2000 kgs/h. Adopting UK technology,100% high quality with CE,ISO Certification.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BM

  • ENERPAT

Product Description

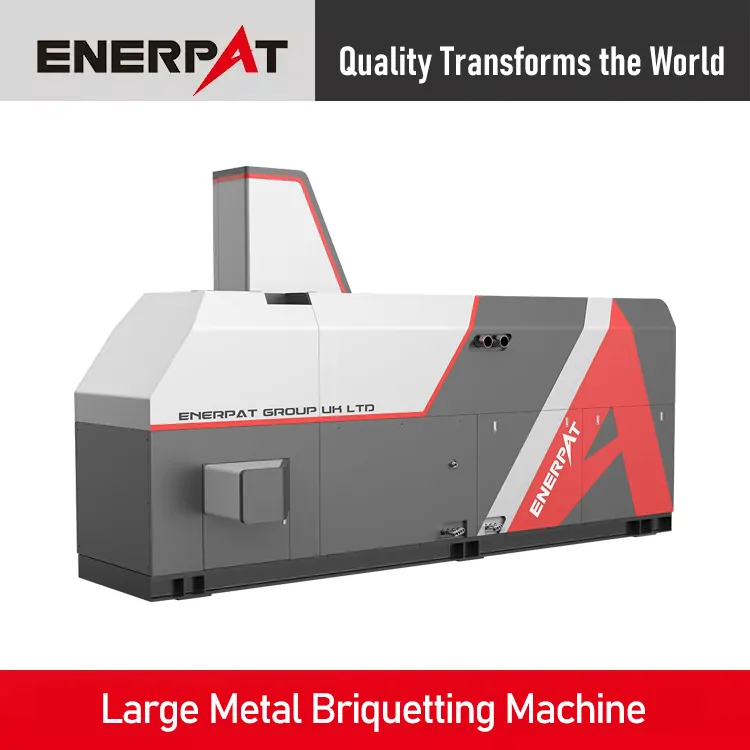

Metal Chips Briquetting Press

Metal Briquetting Press

ENERPAT Metal Briquetting Press is mainly used to press and recycle various iron chips, aluminum chips, copper chips and other metal chips cut by machine tools. Metal Chips Briquetting Press adopts a fully automated disposal process, which can directly press the chips into briquettes and shape them at the same time. The cutting oil is separated from the briquette to ensure that the original material of the briquette is not contaminated, and the cutting oil can be recycled and reused.

Composition and Structure

产品结构图

Product Applications

Applications


Product Video


Product Details

Pressing Cylinder

Pressing Cylinder
  1. Choose the brand company and international standard seamless steel pipe

  2. All piston rods are chrome plated

  3. Choose the British Hallite brand as the cylinder seal


PHydraulic System

3.3液压系统
  1. Power unit pumps are based on European standard

  2. All power units have 90 micron suction filters and 25 micron return filters as standard.

  3. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.

  4. Hydraulic power unit suppliers offer a hydraulic circuit and parts list,

  5. Hydraulic products offer this as well as a full installation and maintenance manual.

  6. Each power unit is supplied with a test certificate and CE approval documentation.


Air Conditioner Cooling System

工业制冷机
  1. Air Conditioner Cooling System installed on the hydraulic system

  2. Air Conditioner Cooling System supports machine 24/7 working

  3. Air Conditioner Cooling System with Test Certification and CE approved documents


Electrical Control System

3.6电气系统(放电器柜图)
  1. Siemens/Schneider PLC Automatic Control System & Stable Operation, Simple Operation

  2. Touch screen/button operation, saving time and effort

  3. Real-time intelligent monitoring, safe and efficient


Feeding Device

3.1横纵绞龙(内贸官网图)
  1. Auger-Type Feeding-In Device & The Collaboration of Horizontal and Vertical Twists

  2. Vertical twist for smooth feeding-in

  3. Horizontal twist for preventing overhead unstuck waste materials


Technical Data Sheet

ModelBM-1090BM-1612
BM-2013BM-3014BM-4015BM-6320

Press Force

(tons)

100
160200300400630

Bale Diameter

(mm)

90
120130140150200

Motor

 (kw)

1118.5222230
135

System Pressure

 (mpa)

252525252525

Capacity Aluminum

 (kg/h)

801201703604501000

Capacity Steel

 (kg/h)

20030040090010004000

Successful Cases

Successful Cases (5)

Model:BM-1090

Material:Aluminum Turning

Successful Cases (1)

Model:BM-4015

Material:Iron Shavings

Successful Cases (4)

Model:BM-1612

Material:Copper Chip

Successful Cases (3)

Model:BM-3014

Material:Aluminum Chips

Successful Cases (2)

Model:BM-1090

Material:Aluminum Chips

Successful Cases

Model:BM-6320

Material:Copper Chips
