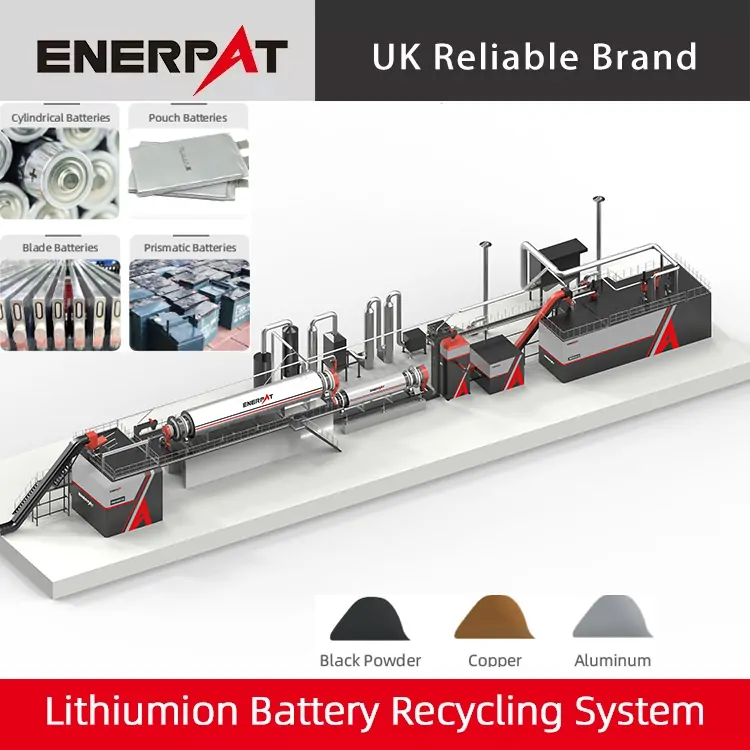

Lithium Ion Battery Recycling System

ENERPAT® Lithium Ion Battery Recycling System is an efficient crushing and recycling solution specifically designed for used lithium batteries.​ It aims to separate valuable metals such as copper and zinc, facilitating resource recovery and reuse. With exceptional processing capabilities, the system can achieve a production capacity ranging from 4 tons per hour, contributing to the green circular economy.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ENERPAT

Product Video

Product Description

锂电池回收线

锂电池破碎系统 拷贝(1)


Lithium Ion Battery Recycling System

ENERPAT® Lithium Ion Battery Recycling System integrates a feeding system, crushing system, fire protection system, inspection and maintenance system and intelligent monitoring system. The lifting system lifts the lithium battery and sends it into the sealed buffer bin, and nitrogen is immediately injected into the bin to reduce the oxygen concentration. When the oxygen content is less than 5%, the valve opens, and the material falls into the closed crushing system protected by nitrogen and is crushed into 30mm size (the discharge size is adjustable), discharged through the lower hopper, and then transported to the next process by the auger conveyor.

Product Applications

产品应用2(1)

End products

产出物料

Core Advantages

Advantages

核心优势-1


Modular Synergy and Flexible Layout

The entire line features a modular design, allowing each individual machine to operate efficiently in coordination with others. Customers can flexibly plan the layout according to their specific needs.

核心优势-2


Versatile and Efficient Crushing

The system offers broad applicability with flexible screen selection, specifically designed for crushing various types of lithium batteries. It operates with an efficiency of 4 tons per hour, features a low wrapping rate, and allows for adjustable discharge particle size.


核心优势-3


Intelligent Fire Control for Worry-Free Safety

The system incorporates intelligent detection and fire control, continuously monitoring oxygen levels and ensuring that nitrogen protection standards are met. In the event of a fire, incidents are reported and addressed immediately, with system valves closing in seconds for automatic fire extinguishing.


核心优势-4


High-Quality Blades for Durability and Efficiency

Equipped with German Dillinger alloy blades, the system features toughness, wear resistance, heat resistance, and corrosion resistance, significantly extending the service life of the blades.


Successful Cases

客户案例-1

Processed Material Types: Soft-pack batteries and blade batteries

Processing Capacity: 4000 kg/h

客户案例-2

Processed Material Type: BYD batteries

Processing Capacity: 3500 kg/h


客户案例-3

Processed Material Type: Lithium iron phosphate (LiFePO4) batteries

Processing Capacity: 3000 kg/h
