Bagging Press Machine

ENERPAT bagging baler machine designed for pressing loose wood shavings ,sawdust,straw,into compact bales,packaging with plastic bags. With Feeding Conveyor and Weighing Conveyor,the bale size and weight is adjustable,also each bale same weight. Adopting UK technology,100% high quality with CE,ISO certification.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HBA-B

  • ENERPAT

Product Video

Product Description

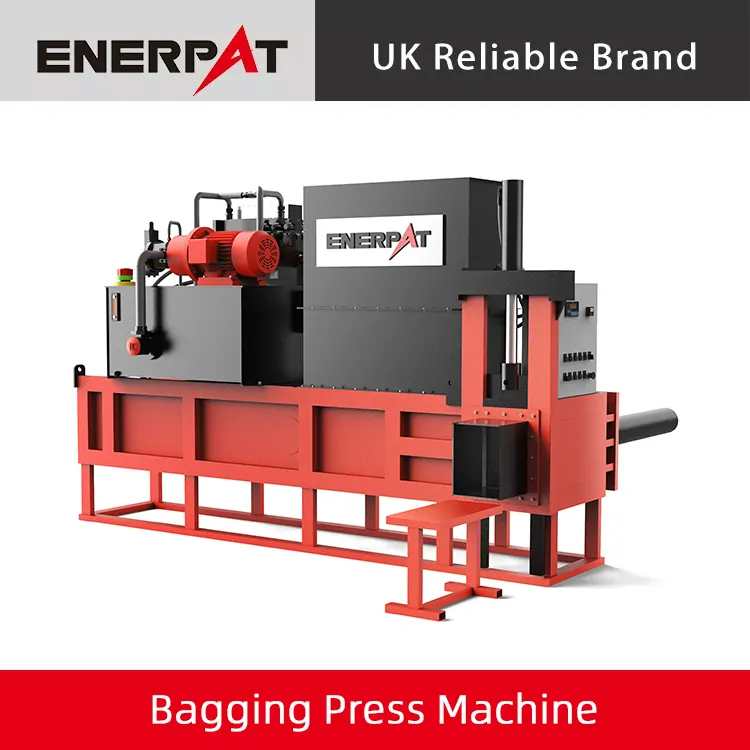

Bagging Press Machine

Bagging Press Machine (HBA-B Series)

ENERPAT Horizontal Bagging Machine is a highly automated compression and  bagging equipment. It can press loose materials into compact bales and send them into pre-prepared plastic bags or snakeskin bags.

We started to design and produce this bagging machine long time ago. From the perspective of customer practicality and cost-effectiveness, we continue to improve in aspects such as material feeding, bale discharging, bale weight and bale shape. At the same time, we will issue strict test reports for each machine.


Composition and Structure

Composition and Structure


Applications

Applications

Product Details

Pressing Cylinder

Pressing Cylinder
  1. Choose the brand company and international standard seamless steel pipe

  2. All piston rods are chrome plated

  3. Choose the British Hallite brand as the cylinder seal


Air Conditioner Cooling System

工业制冷机
  1. Air Conditioner Cooling System installed on the hydraulic system

  2. Air Conditioner Cooling System supports machine 24/7 working

  3. Air Conditioner Cooling System with Test Certification and CE approved documents


Electrical Control System

Electrical Control System
  1. Factory assembled,wired tested

  2. Control wiring:minimum2.5

  3. SQ,nm,600/1000V pvc insulated copper

  4. conductor colour coded as per IEC standards

  5. Support touch screen control,PLC Schneider or Siemens brand


Machine Structure

Machine Structure
  1. High quality international standard steel plate makes the machine body stronger and more durable

  2. Integrated structure, Modular design, Economical and efficient, more convenient installation and maintenance


Hydraulic System

Hydraulic System
  1. Europe Design hydraulic system,efficiency and stable

  2. International Top Brands valve and pump

  3. Air Conditioner Cooling System which accept machine 24/7 working


Technical Data Sheet

ModelHBA-B60HBA-B90HBA-B140

Press force(Tons)

30/3040/5060/80
Hopper size L*W(mm)1000*5601000*5601000*560
Bale size W*H*L(mm)400*300*600430*310*600430*310*600
Machine weight( KG
350040004500
Machine size L*W*H(mm)3300*2660*21003400*2660*21003500*2700*2100
Motor power(KW
1118.522
Cycle times(unload)15/1416/1616/17
ModelHBA-B180HBA-B220HBA-B270

Press force(Tons)

80/100100/120120/150
Hopper size L*W(mm)1200*7001200*7001200*700
Bale size W*H*L(mm)430*310*750430*310*750430*310*750
Machine weight( KG
500055006000
Machine size L*W*H(mm)3800*3250*21003900*3300*21003700*2700*2100
Motor power(KW
223037
Cycle times(unload)20/2318/2415/20

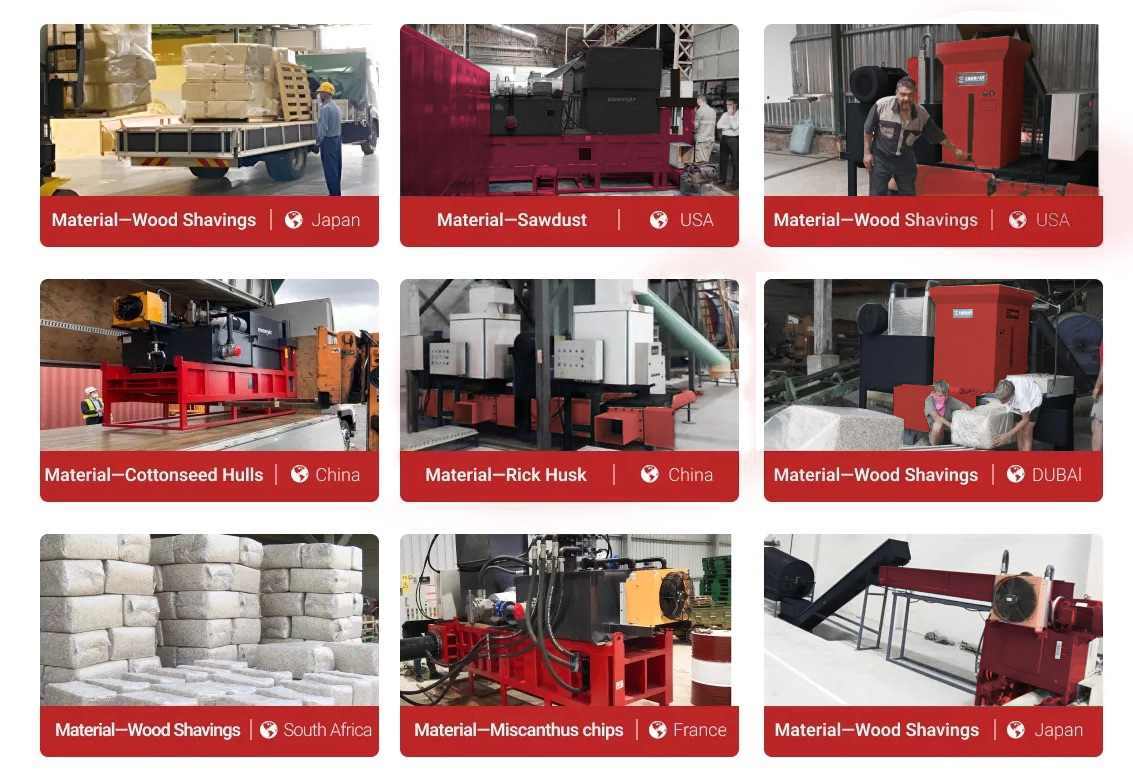

Successful Cases

Successful Cases
