Your Best Recycling Machine Partner

Double Output Metal Chips Briquetting Press

ENERPAT BM-D Series Output Metal Chips Briquetting Press - This advanced equipment is designed to enhance metal scrap processing efficiency. With dual heads operating simultaneously, it significantly shortens production cycles. Utilizing an advanced servo control system and precision molds, it ensures accurate briquette size and consistent weight for easy stacking and storage. Backed by ENERPAT's 80+ years of recycling industry experience and service to 278 Fortune 500 companies, it is a high-quality and reliable choice.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BM-D

  • ENERPAT

Product Video


Product Description

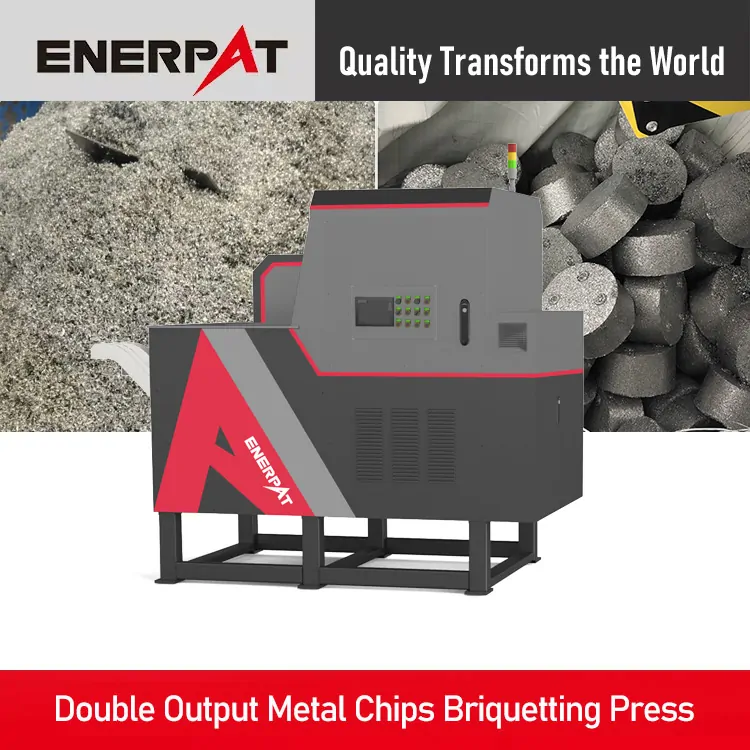

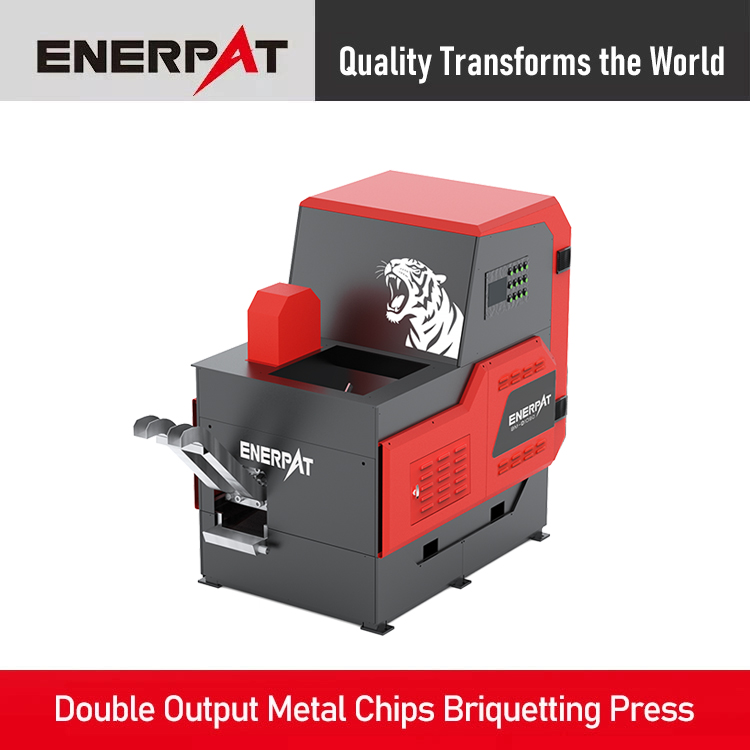

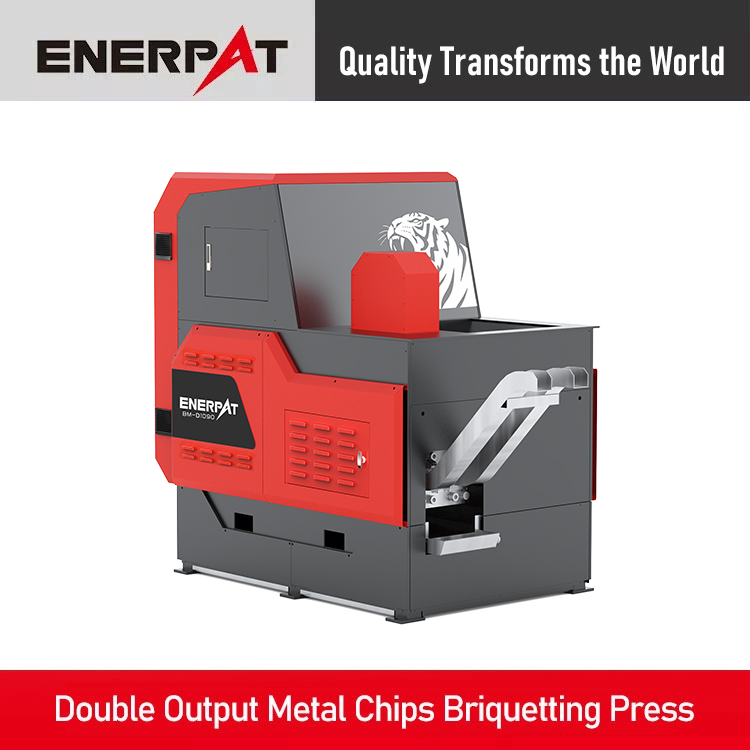

Double Output Metal Chips Briquetting Press

ENERPAT BM-D Series Output Metal Chips Briquetting Press


The ideal choice for enhancing production efficiency, achieving eco-friendly recycling, and processing various metal scraps.


  • Material Application

    Suitable for processing metal shards and chips, including but not limited to steel, aluminum, nickel-cobalt, copper, and stainless steel, meeting diverse scrap processing needs.

  • Eco-Friendly and Energy Efficient

    Briquettes remain leak-free, keeping the workshop clean and easily passing environmental inspections. Rerouting scrap for reuse significantly increases recovery rates, boosting scrap prices by 10%-30% and supporting green development.

  • Servo Control System

    Advanced servo control technology ensures a stable and reliable compression process, producing accurate briquette sizes and enhancing product consistency.

  • Precision Molds

    The precision mold design guarantees uniform briquette weight, facilitating stacking and storage while significantly reducing floor space and optimizing area utilization.

  • Global Service Network

    With a warehouse in the U.S. and service points worldwide, ENERPAT provides convenient and efficient support, ensuring you receive expert assistance no matter where you are.

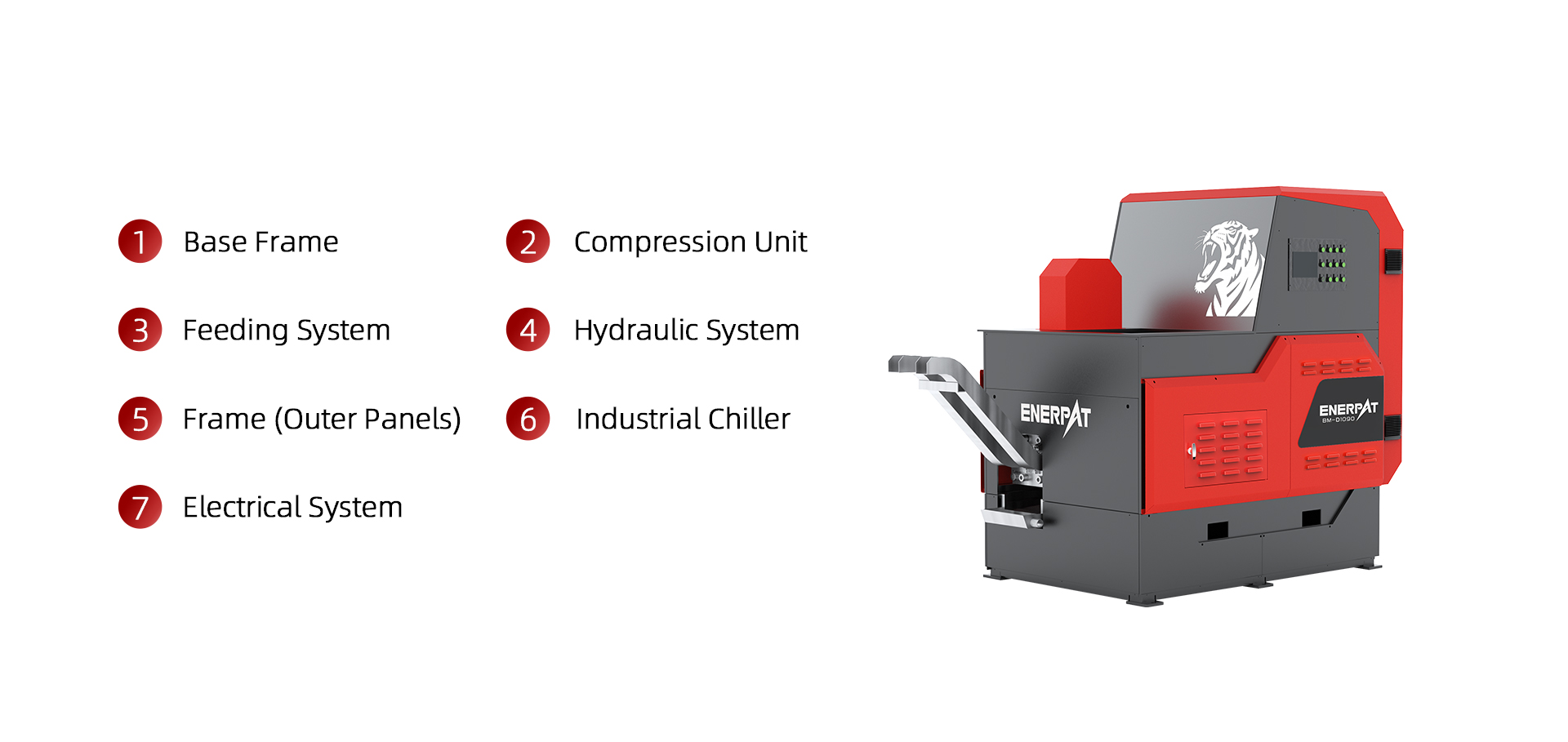

Composition and Structure

Double Output Metal Chips Briquetting Press

Operating Principle

Feeding

Feeding

Metal scraps are conveyed to the briquetting machine inlet via a chip conveyor.

Dual Screw Feeding

Dual Screw Feeding

The dual horizontal and vertical screw design ensures smooth feeding of scraps into the compression chamber.

Hydraulic Compression

Hydraulic Compression

The combination of hydraulic and electrical control systems compresses the scraps into briquettes and ejects them.


Product Applications

Applications

Product Details

Efficient Feeding System

Efficient Feeding System

The vertical screw ensures forced, smooth feeding, while the horizontal screw prevents bridging, ensuring consistent material flow. The dual screw system works in tandem for robust feeding.


High-Performance Compression Chamber

High-Performance Compression Chamber

Designed for high hardness and density, this chamber is wear-resistant and durable. It produces uniform, solid briquettes with controllable dimensions.


High-Efficiency Industrial Chiller

High-Efficiency Industrial Chiller

Provides 24/7 operation, supporting fixed temperature and ambient temperature synchronization to meet the needs of multi-shift automation.


High-Quality Hydraulic Cylinder

High-Quality Hydraulic Cylinder

Brand-name hydraulic cylinders come with a 5-year warranty. The unique hollow design prevents oil leakage, while top-tier components ensure long life and high efficiency.


Advanced PLC Control System

Advanced PLC Control System

Siemens/Schneider PLC enables real-time monitoring and automatic alerts. The touch screen and one-button operation simplify usage, while smart programming allows for easy parameter setting and comprehensive monitoring of operating status.


Technical Data Sheet

ModelBM-D1090BM-D1612
BM-D2013

Press Force

(tons)

100
160200

Bale Diameter

(mm)

90
120130

Motor

 (kw)

1118.522

System Pressure

 (mpa)

252525
Equipment Dimensions (mm)2920×1380
×2150
4250×1740
×2730
4360×1870
×2880
Equipment Weight (kg)300040005000
Operation ModeFully AutomaticFully AutomaticFully Automatic

Successful Cases

Successful Cases (5)

Model:BM-1090

Material:Aluminum Turning

Successful Cases (1)

Model:BM-4015

Material:Iron Shavings

Successful Cases (4)

Model:BM-1612

Material:Copper Chip

Successful Cases (3)

Model:BM-3014

Material:Aluminum Chips

Successful Cases (2)

Model:BM-1090

Material:Aluminum Chips

Successful Cases

Model:BM-6320

Material:Copper Chips
