Economic Wood Shaving Line for Horse Bedding

Whole wood shaving line make soft wood shavings for animal bedding. Includes: wood shaving machine -- drying system -- screen machine -- wood shaving baler -- vacuum sealing machine
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • EWS-37

  • ENERPAT

Product Overview

Economic Wood Shaving Line for Horse Bedding

A whole plant to recycling waste wood

Only Make Good Quality Wood Shavings For Horse Bedding.



This wood shaving machine is designed to produce wood shavings in desired and suitable size to be able to use them as bedding at chicken farming and horse breeding sectors.
There are all adjustment possibilities to get wood shavings in desired size and high quality.
Our machine designed to get good quality of wood shavings by shaving roundwood from 10 cm up to 45 cm diameter.
Chicken farming and horse breeding companies would also get a chance to produce their own wood shavings needs in desired quality, size, and amount with our shaving machine.

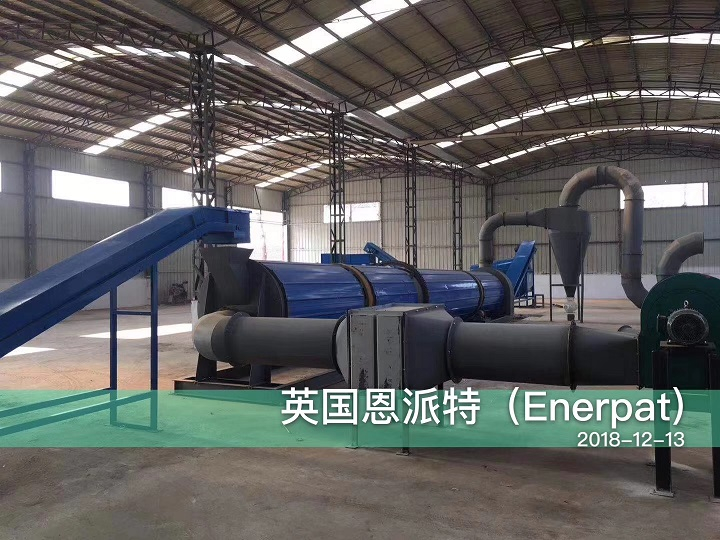

Official Photo

Economic Wood Shaving Line for Horse Bedding


Economic Wood Shaving Line for Horse Bedding


Raw Material And End Products

Economic Wood Shaving Line for Horse Bedding

Applications

  • firewood

  • logs

  • scrap wood

  • wood branch

  • scrap Furniture

  • etc

Technical Data Sheet

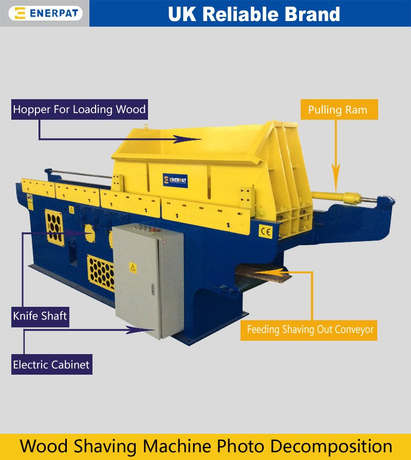

Wood Shaving Machine

Model

EWS-37

Feed Bin Size

1400×450 MM

Cutter Head

4 Pcs

Blades Per Cutter Head

6 Pcs

Blade Material

High speed steel

Motor Power

37 KW

Machine Size

4800×1200×1800 MM

Machine Weight

About 3.0 TONS


Conveyor 1

Model

EC-3000

Motor Power

0.37 kw

Conveyor Width/Length

500/5000mm

Machine Weight

About 200 kgs



Screening Machine

Model

RS-2000

Motor Power

1.5 kw

Mesh Size

8 mm

Machine Size about

3000×1500×2000 mm

Machine Weight

About 500 kgs



Conveyor 2

Model

EC-4000

Motor Power

0.37 kw

Conveyor Width/Length

450/4500mm

Machine Weight

About 180 kgs


Wood Shaving Baler

Model

HBA-B120

Motor Power

22 kw

Press Force

120 tons

Bale Size

400×300×Vari(Max700) mm

Bale Weight

20-25 kgs

Throughput

80~90 bales per hour

Machine Size about

2430×3370×2000 mm

Machine Weight

About 5 tons


Vacuum Sealing Machine

Press Force

Sealer(Sealing Size) :L600 xW5~10mm

Motor Power

1.8 kw

Machine Size

670×850×1580 mm

Machine Weight

About 120 kgs




Video

Details

Economic Wood Shaving Line for Horse Bedding
