Economy Wood Pallet Single Shaft Shredder

Economy Wood Pallet Single Shaft Shredder

As a professional shredder supplier,we recommend the most suitable wood pallet shredder to our customers,MSA-F1200 and MSA-F1500 is the most ideal model for wood pallet shredding.

Quantity:
Availability:





Inquire Add to Basket

Brand:
ENERPAT

Vedio

Product Overview

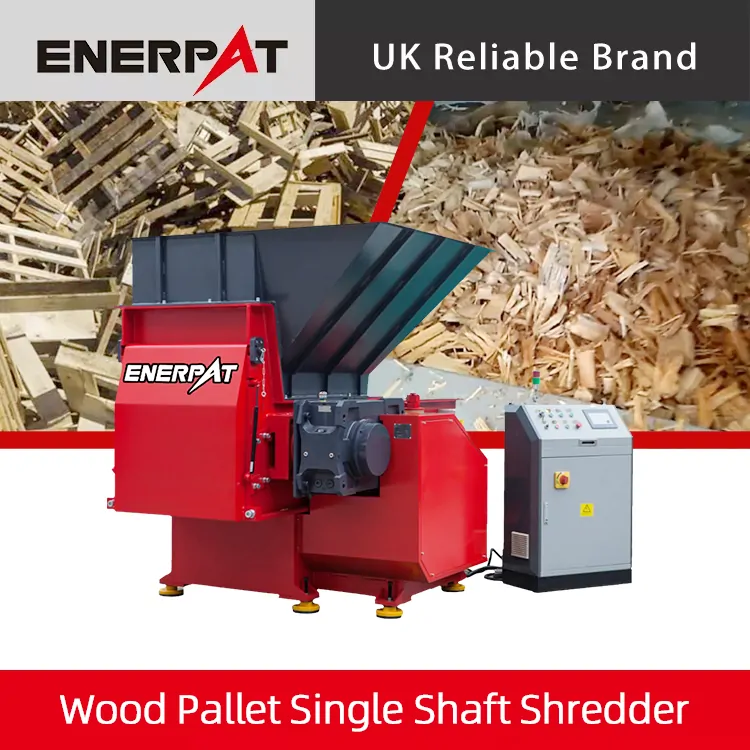

Single Shaft Shredder For Wood Pallet

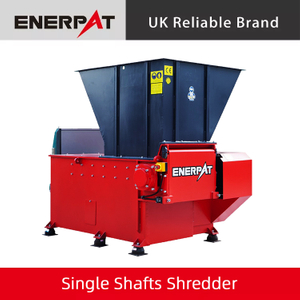

MSA-F1200 and MSA-F1500 single shaft shredder are high performance shredders for shredding pallets, wood waste and residual timber,bulky wooden pieces.

We will select from the wide variety of ENERPAT wood shredders and configure the best option to fit your needs. We can outfit your machine with one of the many different rotor configurations and other ancillary options to make sure you get the final product you require. ENERPAT shredders can also be configured into your current automation system. View the video below to see how our shredders were implemented into a CNC wood cutting system to shred the wood waste. Whether you’re shredding lumber, chipboard/MDF, stairs, windows, doors pallets or semi-finished goods – ENERPAT reduces everything down to size!

With our broad range of shredder machinery we provide the capability to efficiently shred materials such as plastics, wood, paper and cardboard, metal, biomass, waste or data storage media.

Composition and Structure

Product Application

Single Shaft Shredder For Wood Pallet

Technical Data Sheet

Model	MSA-F600	MSA-F800	MSA-F1000	MSA-F1200
Feeding Hopper(mm)	800×600	1300×800	1300×1000	1300×1200
Cutter Shaft Length(mm)	600	800	1000	1200
Discharge Height(mm)	490	565	565	565
Pusher Stroke(mm)	500	815	815	815
Rotor Knives Quantity(pcs)	23	35	45	55
Counter Knives Quantity(pcs)	4	4	4	6
Motor Power (kw)	18.5	37	45	55
Hopper Volume(L)	760	1500	1760	2030
Machine Size (mm)	1290×1820×1730	2800×1765×2080	2800×1980×2090	2800×2490×2135
Machine Weight(kgs)	1650	4000	4300	5300

Model	MSA-F1500	MSA-F2000	MSA-F3000
Feeding Hopper(mm)	1300×1500	1675×2000	1900×2000
Cutter Shaft Length(mm)	1500	2000	3000
Discharge Height(mm)	565	720	720
Pusher Stroke(mm)	815	1100	1100
Rotor Knives Quantity(pcs)	70	95	109
Counter Knives Quantity(pcs)	6	8	6+6
Motor Power (kw)	75	132*2	200*2
Hopper Volume(L)	2430	5500	6500
Machine Size (mm)	2800×2735×2135	3670×4374×2530	55802980×4080
Machine Weight(kgs)	5900	14500	28000

Details

Cutter Shaft Structure

V type rotor knives layout design, special heat treatment knife material DC 53, 4 sides can be used
The gaps between the rotor knives and counter knives can be adjusted
The cutter shaft with surfacing treatment can be used for shredding hard materials like light scrap metals

Screen Structure

The screen can be changed conveniently, the end products size depends on the screen mesh size
Machine has screen supports, which been controlled by the hydraulic cylinder, with safety switch
Customized screen mesh design depends on different materials

Material Pusher Structure

The chamber adopting advanced seal design, with adjustable copper guide blocks and integrated front guide plate
Dust leakage groove -- The dust will be removed from this groove, good protection for the hydraulic system

Power Drive System

High efficiency electric motor with star delta start, F1200 and F1500 with Hydraulic Coupler
Heavy Duty Gearbox - Adopting high safety factor models, connect with the cutter shaft directly
Gearbox damping device - prevent damage for the power drive system

Electric System

The electric cabinet is equipped with a Siemens/Schneider PLC
The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction
Siemens/Schneider electrical components are adopted
