Fully Automatic Horizontal Baler HBA20-5050

Our fully automatic horizontal balers are an automated version of our horizontal balers, able to process high volumes of recyclable materials such as paper, cardboard and plastics, ideal for companies with a large amount of daily waste to handle. Materials are pressed into stable, high-density bales by our fully automatic balers, which are easy and safe to stack, requiring less storage space. The length and weight of bales is selectable, with bales being tied automatically when the selected length is reached.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HBA20-5050

  • ENERPAT

Video

Product Overview

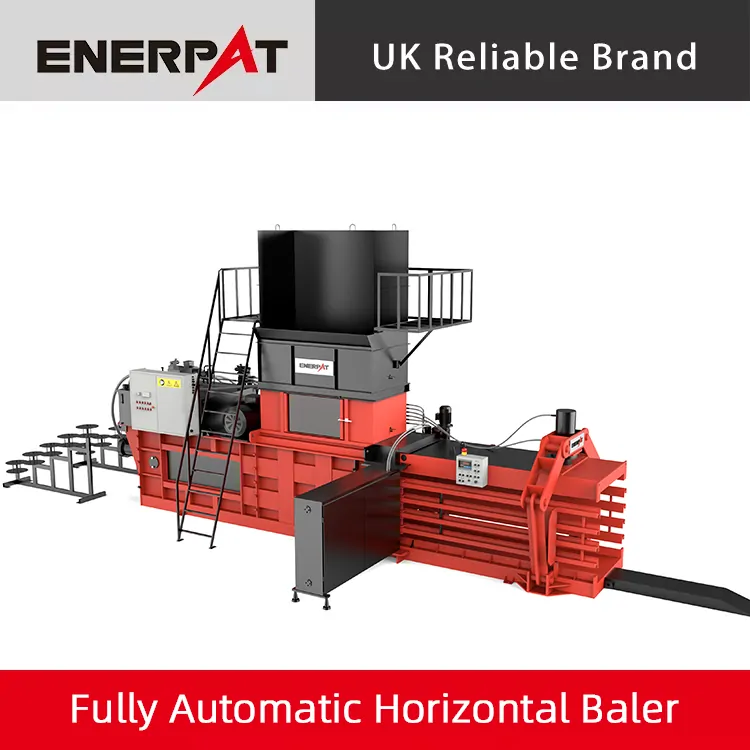

Fully Automatic Horizontal Baler

Fully Automatic Horizontal Baler

Our fully automatic horizontal balers are an automated version of our horizontal balers, able to process high volumes of recyclable materials such as paper, cardboard and plastics, ideal for companies with a large amount of daily waste to handle.

Materials are pressed into stable, high-density bales by our fully automatic balers, which are easy and safe to stack, requiring less storage space. The length and weight of bales is selectable, with bales being tied automatically when the selected length is reached.

Our fully automatic horizontal balers are CE marked and designed with customer requirements in mind, making your waste management a simple and cost efficient process.


Enerpat Direct supply a full range of fully automatic horizontal balers to handle all the standard materials such as cardboard, soft plastics (shrink-wrap, plastic sheeting), PET bottles as well as hard plastics, aluminium and steel cans and even difficult materials such as RDF (Refuse Derived Fuel).

Fully automatic balers are required when a throughput over 2 tonnes per hour is needed. Tying-off of bales is carried out automatically.

Composition and Structure

Fully Automatic Horizontal Baler

Product Applications

Main applications: Industial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm,PET boles, HDPE botles, plastic fims, woven bags, eic

Fully Automatic Horizontal Baler


Technical Data Sheet

Model

Bale Size
(WxHxL)(mm)
Bale Weight
(Cardboard)(kg)
Motor Power
(kw)
Press Force
(t)
Machine Size
(LxWxH) (mm)

HBA-30-5050500×500×L40-7011305300×2600×1750
HBA-40-7272720×720×L200-50022406770×3050×3580
HBA-60-110751100×750×L400-70022606880×3850×3550
HBA-80-110751100×750×L600-90037806880×3850×3550
HBA-100-1101101100×1100×L800-1100451008560×3950×4550
HBA-120-1101251100×1250×L900-1200551209250×4150×4850
HBA-150-1101251100×1250×L1100-13009015010050×4100×4910
HBA-200-1101251100×1250×L1250-135011020010050×4100×4910

Product Details

Three-way Compression

Three-way Compression
  • The three-way compression mechanism is equipped with three hydraulic cylinders, which are controlled in two directions and change in linkage with the pressure of the main compression cylinder.

  • The three-way compression design ensures that the block is well formed and the finished product has a high density


Hydraulic System

Hydraulic System
  • Europe Design hydraulic system,efficiency and stable

  • International Top Brands valve and pump

  • Air Conditioner Cooling System which accept machine 24/7 working


Electric System

Hydraulic System
  • The main electrical components are selected from the French Schneider brand

  • The PLC brand of the equipment is Siemens

  • European CE design standard, in line with EU safety requirements


Automatic Baling System

Automatic Baling System
  • German automatic strapping technology, stable and efficient

  • The core components are imported, reliable and durable



Customer Cases

Auto-Tie-Horizontal-Baler-5

Area:China

Auto-Tie-Horizontal-Baler-4

Area:Peru

Auto-Tie-Horizontal-Baler-6

Area:USA

Auto-Tie-Horizontal-Baler-3

Area:Dominina

Auto-Tie-Horizontal-Baler-1

Area:USA

Auto-Tie-Horizontal-Baler-2

Area:Peru
