Hopper Style Tire Wire Baler

ENERPAT Hopper Style Tire Wire Baler efficiently compresses and bales tire wire, specifically designed for handling difficult-to-compress materials.​ It allows for continuous feeding, reducing downtime. With a capacity ranging from 1 ton per hour to 20 tons per hour, this baler incorporates British technology, is 100% high quality, and is CE and ISO certified.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • AMB-H

  • ENERPAT

Product Video

Product Description

Hopper Style Tire Wire Baler

ENERPAT Hopper Style Tire Wire Baler

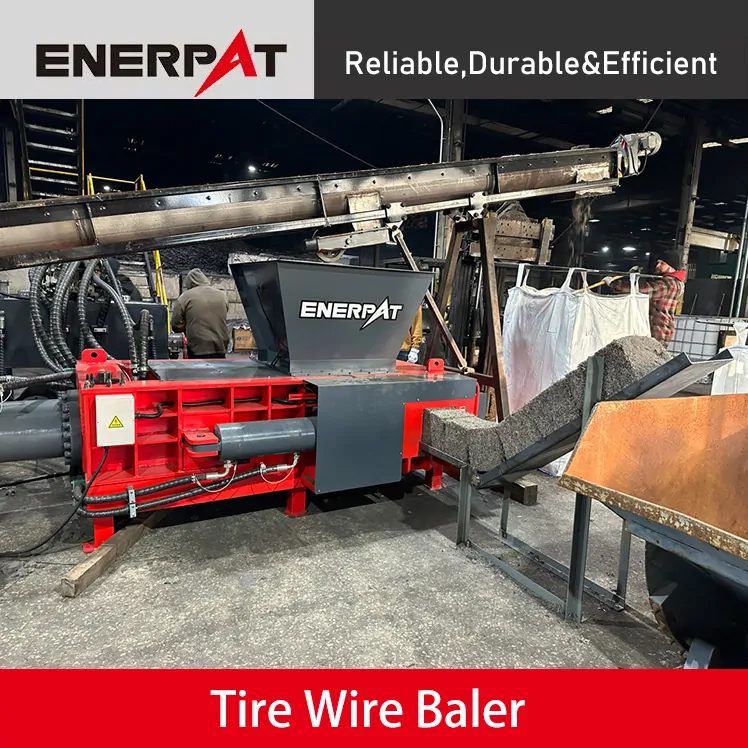

ENERPAT Hopper Style Tire Wire Baler, also known as the shred tire wire baler, is an efficient compression and baling device specifically designed for tire wire and other similar metal waste. This machine utilizes advanced compression technology to compress the steel wire byproducts generated during tire recycling, as well as similar metal waste, into high-density bales, significantly enhancing storage and transportation efficiency.

The ENERPAT Hopper Style Metal Compactor Machine allows for continuous feeding, reducing downtime. Its capacity ranges from 1 ton per hour to 20 tons per hour.

Composition and Structure

Hopper Style Tire Wire Baler


Product Applications

Hopper Style Tire Wire Baler

Product Details

Baler Structure

3.1设备结构
  1. Choose the brand company and international standard Steel Plate.

  2. Using plasma CNC machines to make steel plate for Welding process

  3. All steel parts are CO2 welded.

  4. Using the method of flaw detection to detect the quality of welding.


Pressing Cylinder

Pressing Cylinder
  1. Choose the brand company and international standard seamless steel pipe.

  2. All piston rods are chrome plated.

  3. Choose the British Hallite brand as the cylinder seal.


Power Pack

Power Pack
  1. Power unit pumps are based on European standard.

  2. All power units have 90 micron suction filters and 25 micron return filters as standard.

  3. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.

  4. Hydraulic power unit suppliers offer a hydraulic circuit and parts list.

  5. Hydraulic products offer this as well as a full installation and maintenance manual.

  6. Each power unit is supplied with a test certificate and CE approval documentation.


Open Feeding Hooper

3.2料斗结构
  1. Big feeding hopper, accept customized design.

  2. Continous feeding, no need stop.


Air Conditioner Cooling System

Air Conditioner Cooling System
  1. Air Conditioner Cooling System installed on the hydraulic system.

  2. Air Conditioner Cooling System supports machine 24/7 working.

  3. Air Conditioner Cooling System with Test Certification and CE approved documents.


Electrical Control System

Electrical Control System
  1. Factory assembled,wired tested .

  2. Control wiring:minimum2.5.

  3. SQ,nm,600/1000V pvc insulated copper.

  4. conductor colour coded as per IEC standards.

  5. Support touch screen control,PLC Schneider or Siemens brand.


Siemens Motor

Motor
  1. Siemens brand.

  2. Support 24 hours non-stop operation.

  3. Secondary energy consumption motor is more environmentally friendly.

  4. Explosion-proof motor can be installed.


Technical Data Sheet

ModelAMB-H1075-100AMB-H1075-250AMB-H1510-160AMB-H2014-250
Press Force (Tons)100250160250 T
Motor Power (KW)3022+2237+152500x2000x1200 mm
Press Chamber (mm)1000x7501000x7501500x10002x30 kw-4
Bale Size (mm)300x300250x2502x160 m/r2x160 m/r
Capacity (Bales/h)6060500x500 mm500x500 mm
Operation Type

Automatic

Automatic

Automatic

Automatic

Successful Cases


Material: Aluminum Cans

Material: Aluminum Cans

Material: Metal Shavings

Material: Metal Shavings


Material:Aluminum Scraps

Material:Aluminum Scraps

Tire-Wire-with-Head

Material: Tire Wire with Head
