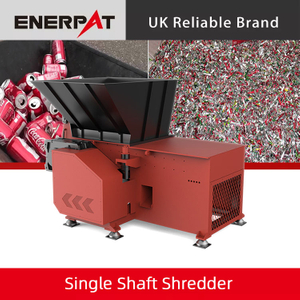

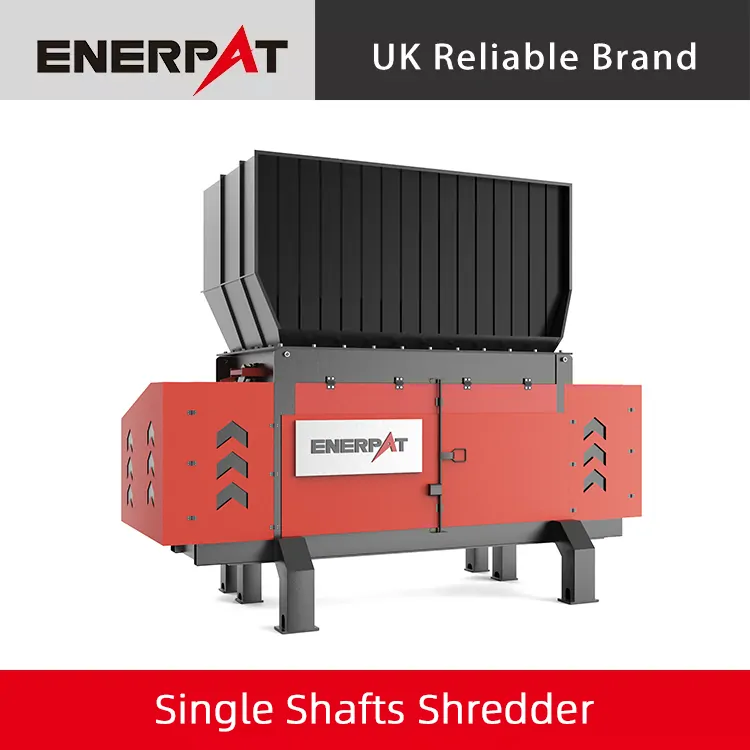

In Stock MSA-F3000 Single Shaft Shredder Machine

MSA-F3000 Single Shaft Shredder Machine Video

Data-Driven Specifications

• Overall Dimensions: 3670 x 4374 x 2530 mm

• Shredding Chamber Width: 3000 mm (Ensuring High-Volume Shredding)

• Total Motor Power: 400 kW (Dual Motor Configuration for Powerful Performance)

• Rotor Material: Baosteel 42CrMo (High Strength and Durability)

• Shredding Efficiency Increase: 50% (V-Shaped, Densely Packed Blade Design)


Operation Principles

Material Pushing

Pusher arm, driven by hydraulic cylinder, feeds material to the cutter.

Material Shredding

Material is shredded by the shearing action of rotating and stationary blades.

Screen Discharge

Shredded material exits through the screen;  screen aperture determines particle size.

High-Performance Cutting System for Increased Efficiency

Equipped with premium cutting tools made from Baosteel 42CrMo, the robust and durable rotor design ensures reliable performance. The V-shaped, densely packed blade arrangement increases shredding efficiency by 50%, rapidly reducing scrap metal to the desired particle size.

Large Capacity Hopper with Hydraulic Pusher

The large-capacity hopper minimizes the need for frequent loading, increasing overall productivity. The hydraulic pusher applies consistent pressure during the shredding process, ensuring efficient material breakdown with minimal residue.

Advanced Drivetrain for Powerful Output

A high-power motor and advanced drivetrain deliver robust and stable power output, meeting the demands of large-scale shredding operations. Effortlessly handles even the toughest scrap metal materials.

Flexible Screening System for Precise Output Control

Adaptable to diverse needs, our flexible screening system supports customizable round hole, hexagonal, and fishbone screen options. Precisely controls output size for consistent particle dimensions, meeting varying customer requirements. Pneumatic spring assist for easy screen opening, simplifying operation and improving efficiency.

Intelligent Electrical System for Safe and Efficient Operation

The Siemens/Schneider PLC electrical system provides intuitive, user-friendly operation. Automatic rotor reversal upon overload and automatic shut-down when material is low effectively protect the equipment, ensuring safe and efficient operation.

Product Applications

Sturdy and durable, easy to maintain

Modular assembly design, easy maintenance. Ultra-tough mortise and tenon plate and welded box structure ensure firmness and long service life.

Excellent blade shaft, efficient crushing

Baosteel 42CRMO blade shaft, firm and reliable. V-shaped close-packed small blade structure, crushing rate increased by 50%, unstoppable.

Efficient hydraulic pressing, stable operation

Efficient hydraulic swing arm pressing design, exerting strong driving force. Automatically adjust pressure and speed, adapt to different materials, and maintain long-term high-intensity and stable operation.

Flexible screen, uniform particle size

Adapt to a variety of needs, support customized round hole, hexagonal, herringbone screen. Strictly control the discharge size, pneumatic spring assisted opening, improve operation efficiency.

Powerful power system, flexible adjustment

German Siemens high-power motor + Italian Bonfiglioli reducer, continuous strong output. European standard pulley, free tension adjustment, easy installation and disassembly.

Intelligent control, safe and efficient

Siemens/Schneider PLC electrical system, visual and flexible operation. The equipment automatically reverses when overloaded and automatically stops when lacking materials, ensuring safe and efficient operation.
