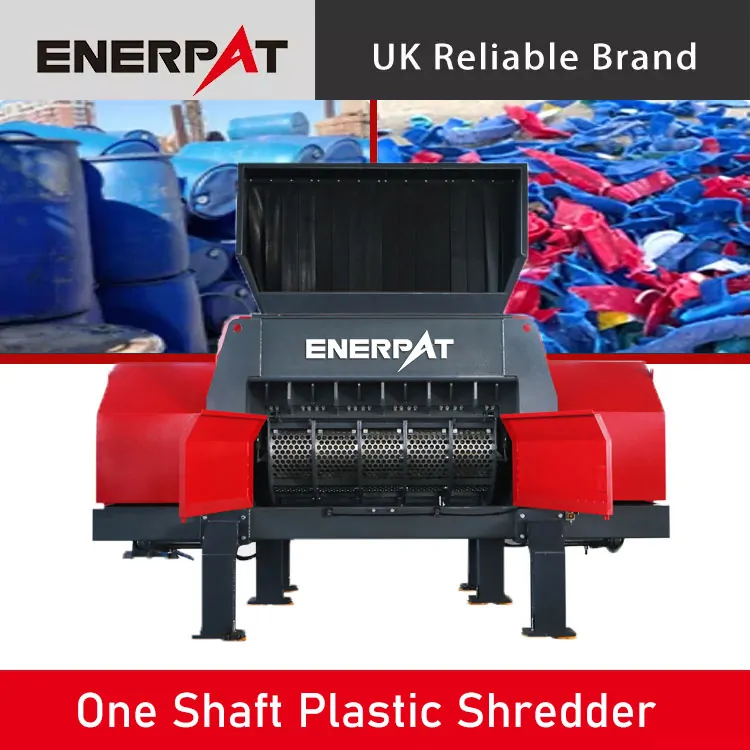

One Shaft Plastic Shredder

ENERPAT One Shaft Plastic Shredder features a PLC control system and a large-capacity hopper design, allowing it to efficiently shred a variety of tough or medium-hard plastics. It is CE-certified, ensuring quality assurance and outstanding output performance. It is suitable for a variety of plastic materials, including plastic bags, films, bottles, and containers, supporting types such as HDPE, LDPE, and PET.

Quantity:
Availability:





Inquire Add to Basket

Model:
MSA-F
Brand:
ENERPAT

Product Video

Single Shaft Shredder for Plastic

Product Description

ENERPAT One Shaft Plastic Shredder

ENERPAT MSA-F Series One Shaft Plastic Shredder stands out as a premier cutting device, featuring an advanced PLC automatic control system for easy and intelligent operation. It includes a large-capacity hopper and a horizontal push system, effectively handling a variety of shredding needs while delivering high and stable output. Its sturdy construction and exceptional performance make it particularly suitable for processing tough or medium-hard materials, such as bundled waste plastics. With attention to detail, the ENERPAT shredder is the ideal choice for your plastic recycling and waste management needs.

Composition and Structure

One Shaft Plastic Shredder

Operation Principles

Material Pusher Structure Pushes the Material

The Material Pusher Structure is driven by the hydraulic cylinder to push the material to the blade shaft.

Material Shredding

The material is shredded through the mutual shearing between the movable blades and the fixed blades.

Screen Discharge

The shredded material is discharged through the screen system, and the particle size of the discharged material is determined by the aperture of the screen.

Product Applications

Product Details

DETAILS

Technical Data Sheet

Model	MSA-F600	MSA-F800	MSA-F1000	MSA-F1200
Feeding Hopper(mm)	800×600	1300×800	1300×1000	1300×1200
Cutter Shaft Length(mm)	600	800	1000	1200
Discharge Height(mm)	490	565	565	565
Pusher Stroke(mm)	500	815	815	815
Rotor Knives Quantity(pcs)	23	35	45	55
Counter Knives Quantity(pcs)	4	4	4	6
Motor Power (kw)	18.5	37	45	55
Hopper Volume(L)	760	1500	1760	2030
Machine Size (mm)	1290×1820×1730	2800×1765×2080	2800×1980×2090	2800×2490×2135
Machine Weight(kgs)	1650	4000	4300	5300

Model	MSA-F1500	MSA-F2000	MSA-F3000
Feeding Hopper(mm)	1300×1500	1675×2000	1900×2000
Cutter Shaft Length(mm)	1500	2000	3000
Discharge Height(mm)	565	720	720
Pusher Stroke(mm)	815	1100	1100
Rotor Knives Quantity(pcs)	70	95	109
Counter Knives Quantity(pcs)	6	8	6+6
Motor Power (kw)	75	132*2	200*2
Hopper Volume(L)	2430	5500	6500
Machine Size (mm)	2800×2735×2135	3670×4374×2530	55802980×4080
Machine Weight(kgs)	5900	14500	28000
