Quality Box Single Shaft Shredder

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ENERPAT

Product Description

Quality Box Single Shaft Shredder

Save paper and save the tree- As a use of papers is all around us, the usage amount of papers also can be found everywhere. Among all of them packaging with papers of cardboard are mostly famous. Yes, from shoe case to toy cover, electronics packaging to food or beverage packaging, glass cover to crafting – use of paper or paper boxes or another form of paper is very common to us. Here we should take help of technology to crush the paper boxes fast and easily so that it can be easy to arrange, transport or reuse the packet again and again. And it will lower the requirement of paper making raw materials. The name of such technology is known to us as Box shredder.


In domestic purpose, you may not feel the needs of the box shredding machine. But in commercial purposes where employees always need to unpack products every time and they need to take care of arranging those boxes in unique shaped, the need of box shredder must be felt.


We all are very familiar with cardboard boxes packaging. The cardboard boxes are itself a reused product. Once the cardboard boxes are made, they are sent for reuse then or some cut them in small shape and use as a papermaking product. In earlier days there must have a godown with full of packages and multiple employees to crush the packets or to arrange them. You may make the estimate that how much a business has to spend for this process. They had to pay godown rent, electric bills, maintenance charges, employee’s remuneration etc. and after all, you wouldn’t get the best result from them because manual jobs always left some faults. In this busy life, you not only allowed to think about that lengthy work process but also need to get best cutting and binding so that you can lower your transportation charges.


The single shaft box shredders are very well designed and user-friendly. A user needs to put the boxes in the hopper, box shredder will shred these waste boxes as user preferred blade type and reduced size. To operate a box shredder you need some of the pre advises like users know how to operate the machine, how to clean them (keeping power off), send for servicing etc. For the business owner, it is suitable to build the shredder near most of the unpacking department to avoid space problem.


Then what are you waiting for? Every shaped and rated box shredder is available in the market. Take the right one for you. For selecting the ideal model, ENERPAT has the professional team who can tailor the size reduction box shredder to suit your specific needs.



Official Photos

MSA-F600-2

1
2
3

Rotor

Genox-Vision-1

  • Chevron rotor design

  • Rotor knives manufactured from special heat treated DC53 steel. They can be rotated and used on four edges before replacement

  • Long life fixed blades that can be adjusted to maintain cutter clearance

  • Wear resistant coating. Optional for applications involving abrasive material such as fibre glass

Screen Basket

Genox Vision Series Screen Basket

  • Quick change screens for accurate particle size control (sizes 12-100mm)

  • Safety limit switch fitted to screen access door to prevent machine operation whilst access door is open

  • Cylinders access door opener mounted on V800-V1500 series for easy opening and access

  • Star screen is available as an option for thin and/or flexible material such as film

Bearings

Genox Vision Series Bearings

  • Oversized, high quality spherical shaft bearings are isoloated from the cutting chamber to prevent product migrations through the grease seals

  • Bearing housing integral machined to ensure the longevity of the bearings

  • Rotor water cooling. Optional water cooling through the bearing housing to the rotor

Ram

Genox Vision Series Ram

  • Segmented shredding chamber floor with brass guides

  • Machined, one-piece segmented floor

  • Advanced adjustable sealing system for the pushing unit

  • Fines discharge chute to the collect the fines during shredding and to protect the  hydraulic power pack

Drives

Genox Vision Series Drives

  • Electric drive motors configured for Star/Delta starting. Fluid coupling mounted on V1200 and V1500

  • Heavy duty reduction gearbox mounted directed onto the rotor shaft

  • Shock absorbing gearbox mountng arrangement to reduce stress on drive components

Hydraulic System

Genox Vision Series Hydraulic System

  • Twin speed hydraulics, faster speed for backwards to maximise the shredding throughput

  • Integrated oil/air cooler to maintain temperature for continuous operation

  • Optional cover insulator for applications that may eject hazard particles such as wood shredding.

Control Panel

Genox Vision Series Control Panel

  • Standalone electrical control panel with Siemens PLC control system and Schneider electrical components.

  • Manual and automatic controls for rotor direction and hydraulic force feeding device

  • Intelligent programming whereby the motor automatically reverses on overload and stops when the machine is idle


Enerpat Single Shaft Shredder Details

Applications

1
2
3

 ·   Plastics
Mouldings, Purgings/Lump, Profiles, Films etc.

 ·   Timber/Wood
 Pallets, Joiners Waste, Green Waste etc.

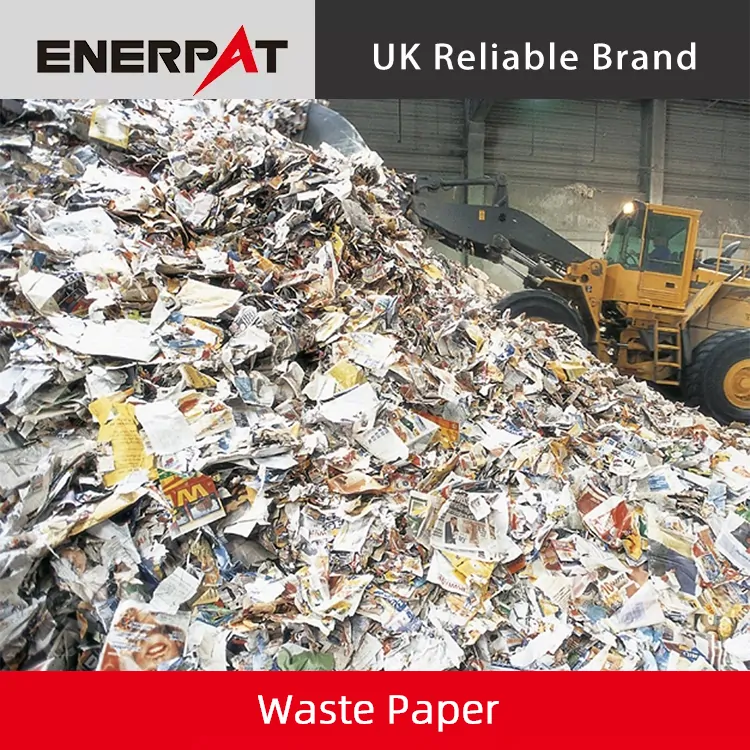

 ·   Paper & Cardboard
Confidential Documents, Production Waste, Packaging Materials etc.

 ·   Copper Cable
Household, Telecoms and Industrial Cables including S.W.A

 ·    Aluminum
Used Beverage Cans (UBC's), Swarf, Cables etc.

 ·   Textiles
Carpet (Rolls & Tiles), Garments etc.

 ·   Security Destruction
Counterfeit Items, Faulty Goods, Out of Date Stock etc.

 ·   Foam
Production Waste etc.



Specifications

1

Video
