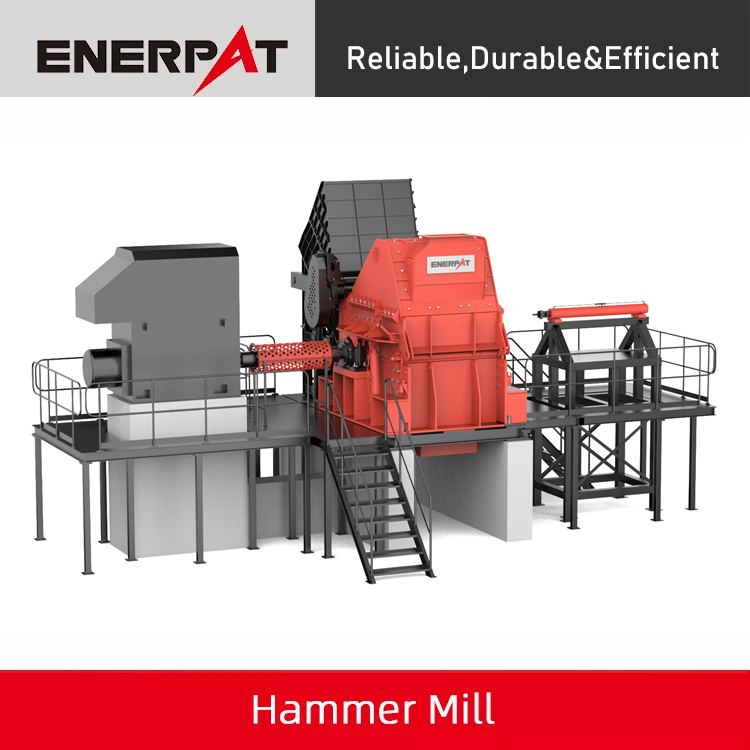

Scrap Metal Hammer Mill

ENERPAT Hammer Mill designed for shredding scrap metals like: car engine, car wheels, motors, steel scrap, aluminum scrap such scrap metals, shredding and separating steel, aluminum, non-metal materials. Capacity from 5 tons/h to 30 tons/h. Adopting UK technology, 100% high quality with CE, ISO certification.

Quantity:
Availability:





Inquire Add to Basket

Model:
MSE-H
Brand:
ENERPAT

Product Video

Product Description

ENERPAT Hammer Mill ( MSE-H Series)

MSA-H series Hammer Mill from Enerpat is for the recycling of scrap metals. It is suitable for processing materials such as car engines, wheels, car shells, motors, steel scrap, aluminum scrap, waste small appliances, aluminum scrap, light scrap steel and other kinds of materials.

This machine can be integrated with conveyor and screening equipment to efficiently separate iron, steel, aluminum, and non-metallic materials. It has a capacity from 5 tons/hour to 30 tons/hour. It adopts British technology, 100% high quality and CE, ISO certified.

Composition and Structure

产品结构图

Product Applications

Applications

The metal is torn and extruded into ball shape under the powerful impact of the hammer mill, while the impurities attached to the metal are separated. The end product is of high density and purity, and can be used for re-melting into new products.

Product Details

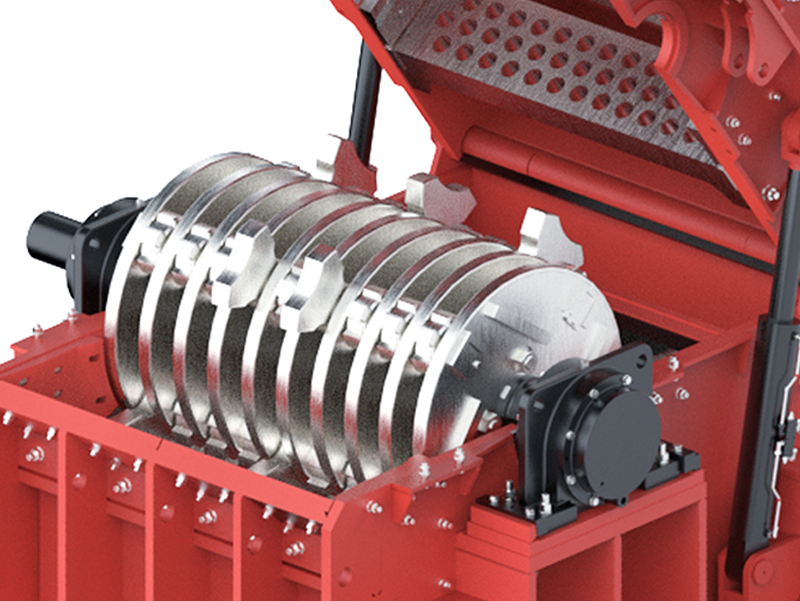

High-Strength Cutter Shaft Structure

With HARDOX 500 Wearing Plate on the shaft for protection.
Different hammer design for different materials, which can improve the shredding efficiency greatly.
High chromium steel hammers.
hammers can be rotated 360 degree, which will not get stuck.

Integral Durable Crushing Chamber

After the crushing chamber is welded, the overall stress relief is annealed, and it is processed and bored by high-precision numerical control to ensure long-term high-load operation of the equipment.
Inside Wearing Plate is NM500 or HARDOX 500.

Discharge abnormal material automatically

There has sensor inside of the crusher can recognize abnormal material, It can give instructions to the crusher if meet some hard materials can not crush, to discharge abnormal material automatically.

Convenient Crusher Screen Replacement

There has rail for the screen, just loose 8 pcs screws, use forklift to pull it, then you can replace the screen. Two minutes is enough.

Convenient Hammers and Pins Replacement

We have hydraulic system which can assist us to change the hammers and Pins.
With special Springs installed below the Crusher, it can efficiently reduce the machine vibration when working.

Electric System

The electric cabinet is equipped with a Siemens/Schneider PLC.
The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.
Siemens/Schneider electrical components are adopted.
With SCHNEIDER Soft Starter.

Technical Specification

Model	MSE-H600	MSE-H800	MSE-H1000	MSE-H1600	MSE-H2000
Motor Power	150 KW	180 KW	220 KW	500 KW	700 KW
Feeding Hopper Size	1023x674 mm	1223×674 mm	1526×983 mm	3064×1596 mm	4047×2141 mm
Shaft Diameter	185 mm	185 mm	185 mm	260 mm	350 mm
Rotor Diameter	850 mm	860 mm	870 mm	1030 mm	1240 mm
Shredding Chamber Length	580 mm	825 mm	1090 mm	1596 mm	2118 mm
Hammer Thickness	65 mm	65 mm	65 mm	94 mm	96 mm
Hammer Quantity	8 pcs	12 pcs	16 pcs	2 2pcs	30 pcs
Rotor Speed	480 rpm	480 rpm	480 rpm	480rpm	480 rpm
Wearing Plate Material	High chrome	High chrome	High chrome	High chrome	High chrome
Wearing Plate Quantity	800kg	1200 kg	1.4 tons	2.4 tons	2.6 tons
Machine Size	3214×3139×4532 mm	3414×3139×4532 mm	5500×4800×4919 mm	6800x4800x4925 mm	9199×8880×7300 mm
Machine Weight	14 tons	17 tons	23 tons	28 tons	65 tons
