Your Best Recycling Machine Partner

Steel Swarf Compactor Manufacturer

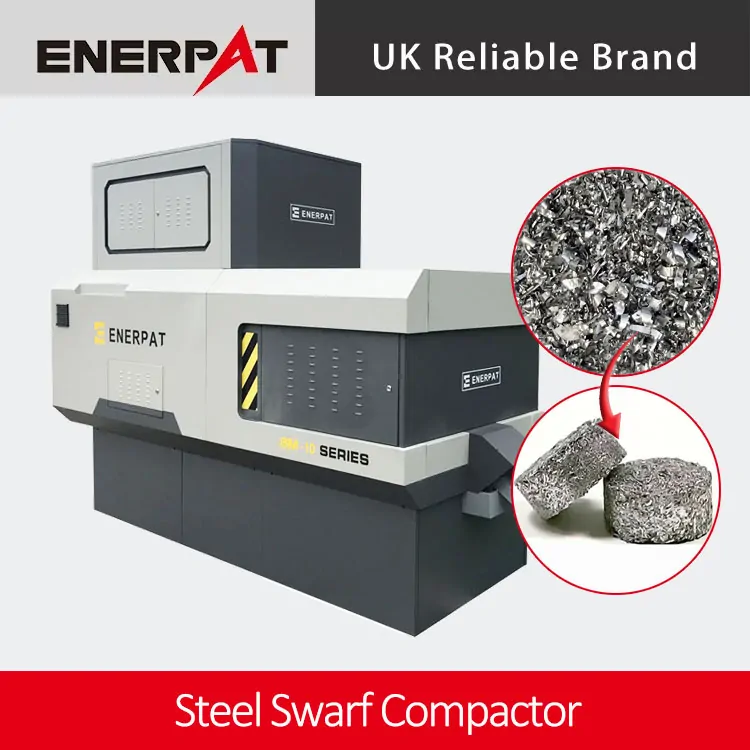

ENERPAT Steel Swarf Compactor is designed for pressing metal chips/metal turnings like steel, aluminum, copper, and stainless steel into compact bales, reducing the metal chips/metal turnings volume, and saving energy for the furnace. Capacity from 50 kgs/h to 2000 kgs/h. Adopting UK technology,100% high quality with CE, ISO Certification.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BM

  • ENERPAT

Product Video


Product Description

Metal Chips Briquetting Press

Introduction to Steel Swarf Compactor

The ENERPAT® Steel Swarf Compactor is an advanced piece of equipment designed specifically for the metalworking industry to efficiently compress and manage steel chips, chips and other by-products generated during machining processes. This machine uses innovative hydraulic technology to convert loose metal scrap into high-density, easy-to-storage press cakes, thereby significantly improving scrap processing efficiency and resource recovery value. ENERPAT® Steel Chip Compactor has won widespread praise in the manufacturing and recycling fields for its excellent performance, stable operation and environmentally friendly design concept.


Steel Briquette Machine Advantages

  1. Efficient compression, greatly reducing the volume:

    ENERPAT® Steel Swarf Compactor can significantly reduce the volume of metal scrap, usually with a compression ratio of 8:1, which greatly saves storage space and reduces transportation costs. High-density pressed cakes not only facilitate stacking and transportation, but also improve storage efficiency.

  2. Enhance economic value:

    Compressed metal cake has a higher economic value than loose scrap. These pressed cakes can often be sold at higher prices in the scrap market, bringing additional revenue to the company. At the same time, by recycling cutting fluid and coolant, production costs are further reduced and resources are maximized.

  3. Enhance workplace safety:

    Safety risks when handling loose metal chips can be significantly reduced with the ENERPAT® Steel Chip Compactor. Compacted metal briquettes reduce potential hazards such as flying dust and slipping, providing a safer working environment for employees.

  4. Environmentally friendly and sustainable:

    ENERPAT® Steel Briquette Machine complies with modern environmental concepts and reduces negative impact on the environment by reducing waste volume and optimizing resource recovery. This sustainable approach to waste management helps companies establish a green image and comply with government environmental policy requirements.

  5. Wide applicability:

    This machine is not only suitable for the compression processing of steel scraps, but also can process a variety of metal scraps including aluminum, copper, and brass. This versatility makes the ENERPAT® Steel Swarf Compactor extremely useful in diverse manufacturing environments, meeting the needs of different industries.

  6. Advanced technology and intelligent control:

    ENERPAT® Steel Chip Compactor adopts advanced hydraulic system and PLC control technology, and is equipped with a touch screen interface for easy operation and monitoring. The intelligent design makes the machine operation more stable and reliable, while improving production efficiency and automation level of waste management practice.


Composition and Structure

产品结构图

Product Applications

Applications


Product Details

Pressing Cylinder

Pressing Cylinder
  1. Choose the brand company and international standard seamless steel pipe

  2. All piston rods are chrome plated

  3. Choose the British Hallite brand as the cylinder seal


PHydraulic System

3.3液压系统
  1. Power unit pumps are based on European standard

  2. All power units have 90 micron suction filters and 25 micron return filters as standard.

  3. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.

  4. Hydraulic power unit suppliers offer a hydraulic circuit and parts list,

  5. Hydraulic products offer this as well as a full installation and maintenance manual.

  6. Each power unit is supplied with a test certificate and CE approval documentation.


Air Conditioner Cooling System

工业制冷机
  1. Air Conditioner Cooling System installed on the hydraulic system

  2. Air Conditioner Cooling System supports machine 24/7 working

  3. Air Conditioner Cooling System with Test Certification and CE approved documents


Electrical Control System

3.6电气系统(放电器柜图)
  1. Siemens/Schneider PLC Automatic Control System & Stable Operation, Simple Operation

  2. Touch screen/button operation, saving time and effort

  3. Real-time intelligent monitoring, safe and efficient


Feeding Device

3.1横纵绞龙(内贸官网图)
  1. Auger-Type Feeding-In Device & The Collaboration of Horizontal and Vertical Twists

  2. Vertical twist for smooth feeding-in

  3. Horizontal twist for preventing overhead unstuck waste materials


Technical Data Sheet

ModelBM-1090BM-1612
BM-2013BM-3014BM-4015BM-6320

Press Force

(tons)

100
160200300400630

Bale Diameter

(mm)

90
120130140150200

Motor

 (kw)

1118.5222230
135

System Pressure

 (mpa)

252525252525

Capacity Aluminum

 (kg/h)

801201703604501000

Capacity Steel

 (kg/h)

20030040090010004000

Successful Cases

Successful Cases (5)

Model:BM-1090

Material:Aluminum Turning

Successful Cases (1)

Model:BM-4015

Material:Iron Shavings

Successful Cases (4)

Model:BM-1612

Material:Copper Chip

Successful Cases (3)

Model:BM-3014

Material:Aluminum Chips

Successful Cases (2)

Model:BM-1090

Material:Aluminum Chips

Successful Cases

Model:BM-6320

Material:Copper Chips
