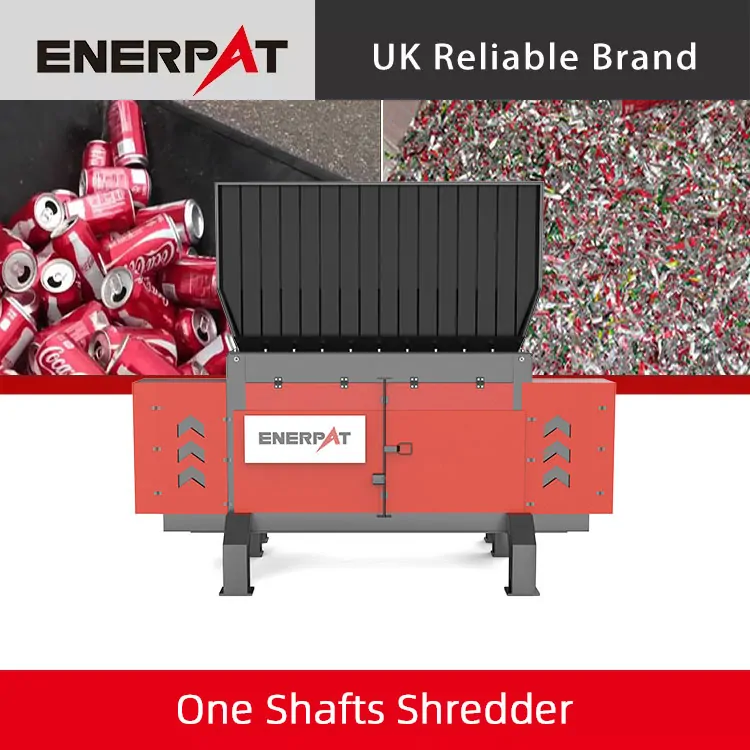

Universal Aluminum Cans Single Shaft Shredding Machine

MSA-F series single shaft shredder is the most ideal shredder for aluminum cans、ubc cans,even the aluminum bales,the end product size is 40mm.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MSA-F1500

  • ENERPAT

Video

Product Description

single shaft shredder

Single Shafts Shredder(MSA-F)(1.5-9.0T/H)

MSA-N Series Single Shaft Shredders are heavy duty size reduction machines suitable for processing a wide range of materials.  These shredders are ideal for the size reduction of flexible and/or medium hardness hollow products in bales. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor loading which maximizes material throughput. Machine capacities typically range between1,500kg/hr –9,000kg/hr+


MSA-N Series commercial Single Shaft Shredders are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Plastc Bottles, Plastic Pipes, Woven Bags, Electrical Cable, Wood, Paper, Domestic Rubbish & Electronic Waste, aluminum cans, ubc bales.  A suitable screen can be chosen depending upon the materials being processed and the next processing requirement.  The Output material discharged by the shredder could be an end product or the primary feed for the next process. The MSA-N Series Shredder can be equipped with many different rotor configurations.  In addition, a cooling system, bead welds & an additional wear layer can be added.


Composition and Structure

single shaft shredder

Applications

·   Plastics –Mouldings, Purgings/Lump, Profiles, Films etc.
 ·  Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
 ·  Copper Cable – Household, Telecoms and Industrial Cables including S.W.A
 ·  Aluminum – Used Beverage Cans (UBC's), Swarf, Cables etc.
 ·  Textiles – Carpet (Rolls & Tiles), Garments etc.
 ·  Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock etc.
 ·  Foam – Production Waste etc.

 ·  Mixed Household & Commercial Waste – RDF/SRF Production

single shaft shredder


Technical Data Sheet

ModelMSA-F600MSA-F800MSA-F1000MSA-F1200

Feeding Hopper(mm)

800×6001300×8001300×10001300×1200

Cutter Shaft Length(mm)

60080010001200

Discharge Height(mm)

490565565565

Pusher Stroke(mm)

500815815815

Rotor Knives Quantity(pcs)

23354555

Counter Knives Quantity(pcs)

4446
Motor Power (kw)18.5374555

Hopper Volume(L)

760150017602030
Machine Size (mm)1290×1820×17302800×1765×20802800×1980×20902800×2490×2135

Machine Weight(kgs)

1650400043005300
ModelMSA-F1500MSA-F2000MSA-F3000

Feeding Hopper(mm)

1300×15001675×20001900×2000

Cutter Shaft Length(mm)

150020003000

Discharge Height(mm)

565720720

Pusher Stroke(mm)

81511001100

Rotor Knives Quantity(pcs)

7095109

Counter Knives Quantity(pcs)

686+6
Motor Power (kw)75132*2200*2

Hopper Volume(L)

243055006500
Machine Size (mm) 2800×2735×21353670×4374×2530 55802980×4080

Machine Weight(kgs)

590014500  28000

Details

Cutter Shaft Structure

Cutter Shaft Structure
  • V type rotor knives layout design, special heat treatment knife material DC 53, 4 sides can be used

  • The gaps between the rotor knives and counter knives can be adjusted

  • The cutter shaft with surfacing treatment can be used for shredding hard materials like light scrap metals


Screen Structure

Screen Structure
  • The screen can be changed conveniently, the end products size depends on the screen mesh size

  • Machine has screen supports, which been controlled by the hydraulic cylinder, with safety switch

  • Customized screen mesh design depends on different materials


Material Pusher Structure

带密封系统的推料机构
  • The chamber adopting advanced seal design, with adjustable copper guide blocks and integrated front guide plate

  • Dust leakage groove -- The dust will be removed from this groove, good protection for the hydraulic system


Power Drive System

Cutter Shaft Structure
  • High efficiency electric motor with star delta start, F1200 and F1500 with Hydraulic Coupler

  • Heavy Duty Gearbox - Adopting high safety factor models, connect with the cutter shaft directly

  • Gearbox damping device - prevent damage for the power drive system


Electric System

Electric System
  • The electric cabinet is equipped with a Siemens/Schneider PLC

  • The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction

  • Siemens/Schneider electrical components are adopted


Customer Cases

AUSTRALIA MSA-F1500

Area:AUSTRALIA

Model:MSA-F1500

客户现场图5(1)

Area:USA

Model:MSA-F1200


HONGKONG MSA-F1200

Area:HONGKONG

Model:MSA-F1200

MSA-F-1500

Area:AUSTRALIA

Model:MSA-F1500
