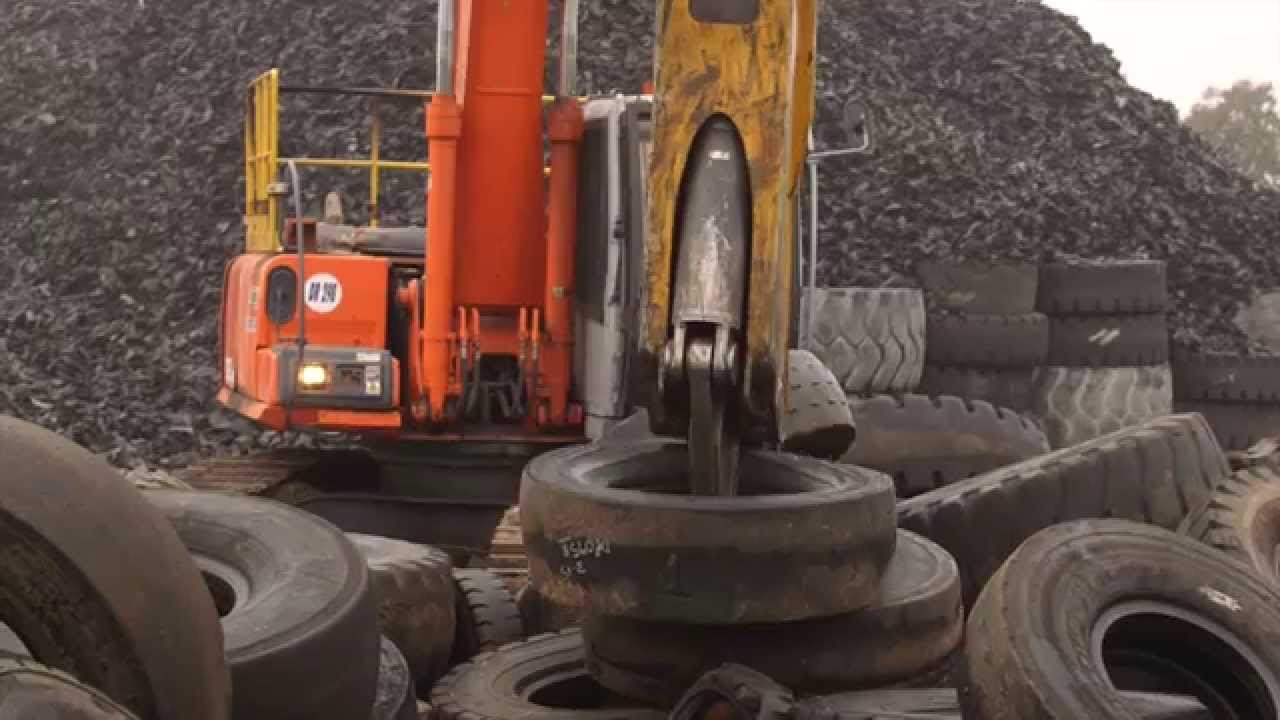

-Debeader – removal of the reinforcing steel wires from the tire rims
-Infeed Conveyor Belt – enables easy, controlled feeding of the tires
-Twin Shaft Shredder – shears the tires into strips
-Conveyor Belt – transports the tire shred to the Rasper
-Rasper – reduces the shred into 15-20mm chips and liberates remaining steel from the rubber
-Overbelt Magnet – separation of liberated steel from the rubber chips
-Conveyor Belt – transport the rubber chips
-Granulator – size reduction of the chips to 1-4mm granules and liberates the textile fraction to allow separation
-Vibratory Screen – sorts the granules by size and removes the majority of textile
-Zig-Zag Classifier – removal of remaining textile
-Drum magnet – removal of remaining steel fines
-Big-Bag Station
-Central De-dusting Unit – removes dust and fines from the system and filters
the air before returning it to atmosphere
-Control Panel
