Your Best Recycling Machine Partner

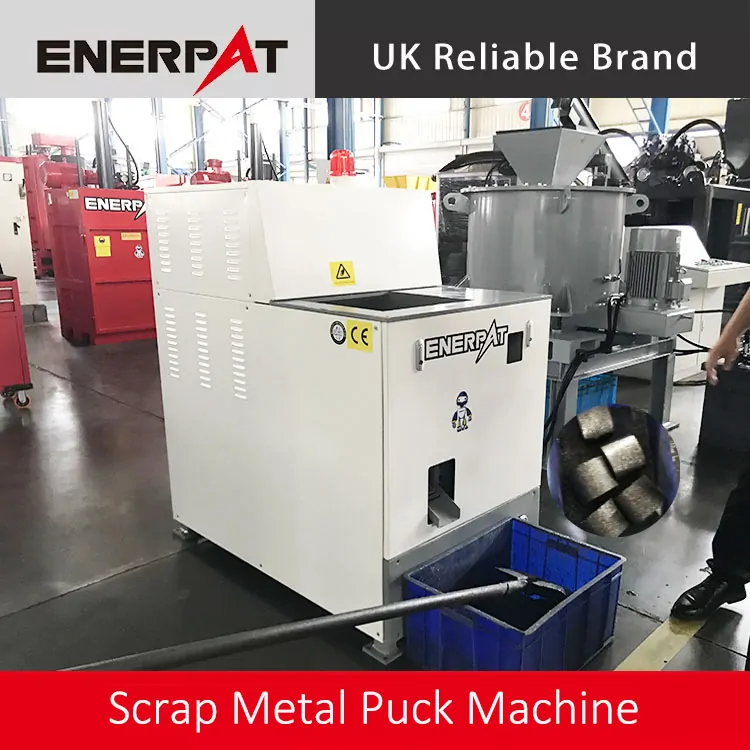

Scrap Metal Puck Machine Factory

ENERPAT Scrap Metal Puck Machine designed for pressing metal chips/metal turnings like steel, aluminum, copper, and stainless steel into compact bales, reducing the metal chips/metal turnings volume, saving energy for the furnace. Capacity from 50 kgs/h to 2000 kgs/h. Adopting UK technology,100% high quality with CE, ISO Certification.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BM

  • ENERPAT

Product Video


Product Description

Metal Chips Briquetting Press


Advantages of ENERPAT® Scrap Metal Puck Machine

1. The metal chip briquetter significantly increases the value of scrap metal:

The ENERPAT® metal briquetting machine uses advanced technology to efficiently compact all types of loose metal fragments, and scraps and turn parts into high-density, uniform-sized metal cakes. This kind of cake not only has a neat appearance, but also has a tight internal organization, which reduces the air and moisture content, thereby obtaining a higher evaluation value in the recycling market, attracting more buyers, and bringing significant economic benefits to the enterprise.


2. Ultimate space optimization:

With its powerful compression capability, ENERPAT® metal briquetting press can reduce the volume of metal scrap by up to more than 90%, greatly saving storage space. This allows companies to re-plan areas originally used for stacking waste materials into production or warehousing space, maximizing the value of space while improving overall operational efficiency and management levels.


3. Significantly reduce transportation costs:

Due to their high density and small size, pressed metal cakes are more convenient and economical to transport than loose scrap metal. This not only reduces the number of transportation times and vehicle requirements, but also reduces loading and unloading costs and time costs, and improves logistics efficiency. At the same time, as the amount of scrap that can be transported per batch increases, companies can enjoy more favorable transportation costs, further enhancing cost competitiveness.


4. Efficient cutting fluid recycling and environmental protection:

ENERPAT® scrap metal puck machine can effectively recover and separate the cutting fluid in the metal chips during the pressing process. This function not only helps to recycle precious coolant resources and reduce waste but also significantly reduces waste liquid treatment costs and reduces the company's environmental responsibility. At the same time, cakes with low moisture content are more in line with environmental protection requirements and help companies establish a good image in terms of green manufacturing and sustainable development.


5. Improve workplace safety and cleanliness:

By using ENERPAT® metal chips briquetting machines, companies can significantly improve environmental conditions in the workplace. After the loose metal scraps are compressed into regular cakes, safety hazards such as slipping and tripping are greatly reduced, and the safety factor of employees is improved. At the same time, a clean and orderly workshop environment helps improve employee work efficiency and satisfaction, makes it easier to meet the requirements of health and safety regulations, and creates a good corporate image.


6. Enhance the flexibility and efficiency of material processing:

ENERPAT® metal briquetting machines are usually equipped with automated control systems and a variety of adjustable parameters, allowing for flexible processing of different metal types, sizes, and shapes. This highly customized processing capability makes companies more comfortable when processing complex and diverse metal scraps, improving the flexibility and efficiency of material processing.


7. Long-term investment return:

Although the initial investment of a scrap metal puck machine may be relatively high, the many advantages it brings (such as increasing the value of scrap metal, reducing transportation costs, improving safety and cleanliness, etc.) will bring long-term economic returns to the enterprise. With the increasing awareness of environmental protection and the continuous expansion of the recycling market, metal chip briquetters will become indispensable and important pieces of equipment for enterprises.

Composition and Structure

产品结构图

Product Applications

Applications


Product Details

Pressing Cylinder

Pressing Cylinder
  1. Choose the brand company and international standard seamless steel pipe

  2. All piston rods are chrome plated

  3. Choose the British Hallite brand as the cylinder seal


PHydraulic System

3.3液压系统
  1. Power unit pumps are based on European standard

  2. All power units have 90 micron suction filters and 25 micron return filters as standard.

  3. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.

  4. Hydraulic power unit suppliers offer a hydraulic circuit and parts list,

  5. Hydraulic products offer this as well as a full installation and maintenance manual.

  6. Each power unit is supplied with a test certificate and CE approval documentation.


Air Conditioner Cooling System

工业制冷机
  1. Air Conditioner Cooling System installed on the hydraulic system

  2. Air Conditioner Cooling System supports machine 24/7 working

  3. Air Conditioner Cooling System with Test Certification and CE approved documents


Electrical Control System

3.6电气系统(放电器柜图)
  1. Siemens/Schneider PLC Automatic Control System & Stable Operation, Simple Operation

  2. Touch screen/button operation, saving time and effort

  3. Real-time intelligent monitoring, safe and efficient


Feeding Device

3.1横纵绞龙(内贸官网图)
  1. Auger-Type Feeding-In Device & The Collaboration of Horizontal and Vertical Twists

  2. Vertical twist for smooth feeding-in

  3. Horizontal twist for preventing overhead unstuck waste materials


Technical Data Sheet

ModelBM-1090BM-1612
BM-2013BM-3014BM-4015BM-6320

Press Force

(tons)

100
160200300400630

Bale Diameter

(mm)

90
120130140150200

Motor

 (kw)

1118.5222230
135

System Pressure

 (mpa)

252525252525

Capacity Aluminum

 (kg/h)

801201703604501000

Capacity Steel

 (kg/h)

20030040090010004000

Successful Cases

Successful Cases (5)

Model:BM-1090

Material:Aluminum Turning

Successful Cases (1)

Model:BM-4015

Material:Iron Shavings

Successful Cases (4)

Model:BM-1612

Material:Copper Chip

Successful Cases (3)

Model:BM-3014

Material:Aluminum Chips

Successful Cases (2)

Model:BM-1090

Material:Aluminum Chips

Successful Cases

Model:BM-6320

Material:Copper Chips
