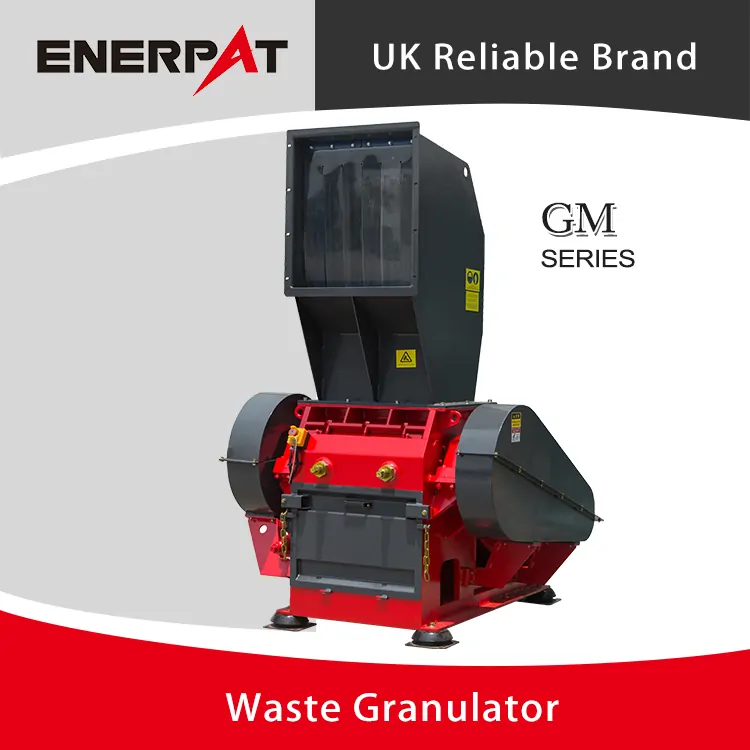

1. GM Series - Scrap Copper Granulator

Suitable Materials: Scrap cables, copper pipes, thin copper products (such as radiators)

Core Data:

• Capacity: 0.5-5 tons/hour

• Crushing Particle Size: 12-20mm (adjustable)

• Motor Power: 22-132+132kW (dual motor configuration)

• Screen Type: Round hole/hexagonal/fishbone screen (customization supported)

Advantages:

• Low Energy Consumption & High Torque: Flexible motor power matching, saving 25% energy.

• Uniform Output: Precise control of screen aperture, reducing subsequent separation costs.

• Safe Design: European standard plug, resistant to instantaneous power surges, reducing failure rate.

2. MSE-V Series - Vertical Hammer Mill Shredder

Suitable Materials: Scrap motors, electronic waste, mixed aluminum-copper materials

Core Data:

• Capacity: 5-15 tons/hour

• Crushing Particle Size: 50-80mm

• Main Engine Power: 132kW

• Hammer Material: High manganese steel castings, wear-resistant life increased by 40%.

Advantages:

• Efficient Grinding: Roller knife plate + wear-resistant lining, metal surface cleanliness > 95%.

• Easy Maintenance: Hammers can be quickly replaced, maintenance time < 1 hour.

• Safe and Reliable: Top anti-splash design to avoid material splashing.

3. MSA-F Series: Single Shaft Copper Shredder Machine

Suitable Materials: Bundled flexible copper materials (such as scrap copper wire, copper shavings)

Core Data:

• Capacity: 1-8 tons/hour

• Crushing Particle Size: 20-40mm

• Motor Power: 18.5-75kW

• Cutter Shaft Material: Baosteel 42CrMo, anti-winding and non-clogging.

Advantages:

• Intelligent Control: PLC automatic control system, overload protection and automatic reversal.

• Highly Energy Efficient: Energy consumption reduced by 20% compared to traditional equipment.

• EU Certified: The whole machine is CE certified, worry-free for export.

4.MSB-E Series: Dual Shaft Copper Shredding Machine

Suitable Materials: Scrap motors, transformers, auto parts (such as copper radiators)

Core Data:

• Capacity: 3-15 tons/hour

• Crushing Particle Size: Long strips (size determined by the blade)

• Motor Power: 75-560kW

• Blade Group Design: Low speed and high torque, shear force increased by 50%.

Advantages:

• All-Round Crushing: Can handle mixed copper-iron materials, copper recovery rate > 98%.

• Low Noise Design: Operating noise < 85 decibels, meets environmental protection requirements.

• Flexible Capacity: Modular design, expandable to 30 tons/hour.

5. MSC-E Series: Quad Shaft Interlock Shredder Machine

Suitable Materials: Scrap circuit boards, mixed metal materials, oversized copper scrap

Core Data:

• Capacity: 10-30 tons/hour

• Crushing Particle Size: 40-60mm

• Main Motor Power: 37×2+15×2 to 90×2+55×2kW

• Blade Group Design: Four-axis linkage, shear force increased by 80%.

Advantages:

• Super Crushing: Improves efficiency by 3 times when processing heavy metals (such as car bodies).

• Uniform Output: Precise control of screen aperture, particle size error < 5%.

• Intelligent Monitoring: PLC + remote monitoring, real-time feedback of equipment status.
